Description:

1) The USB power supply, dose not require an external power supply

2) Support functions of remote wake up and sleep

3) Fashionable and practicable design

4) Nice shape and unique style

5) High quality and durable

6) Light weight and portable

** USB3.0 multifunction adapter is 3 in 1 function adapter, which integrates multifunctional adapter.TF/SD card can be read, support 1000m Ethernet, start with the latest technology, transmission speeds of up to 5 GMBPS, take your experience to the gigabit network; Because the product integrate 3 latest technology in one products, its Stable, use friendly, so it is especially popular among the users of Window Surface, Mac-book Air, Retina, ultra-thin laptops and tablet computer.

Features:

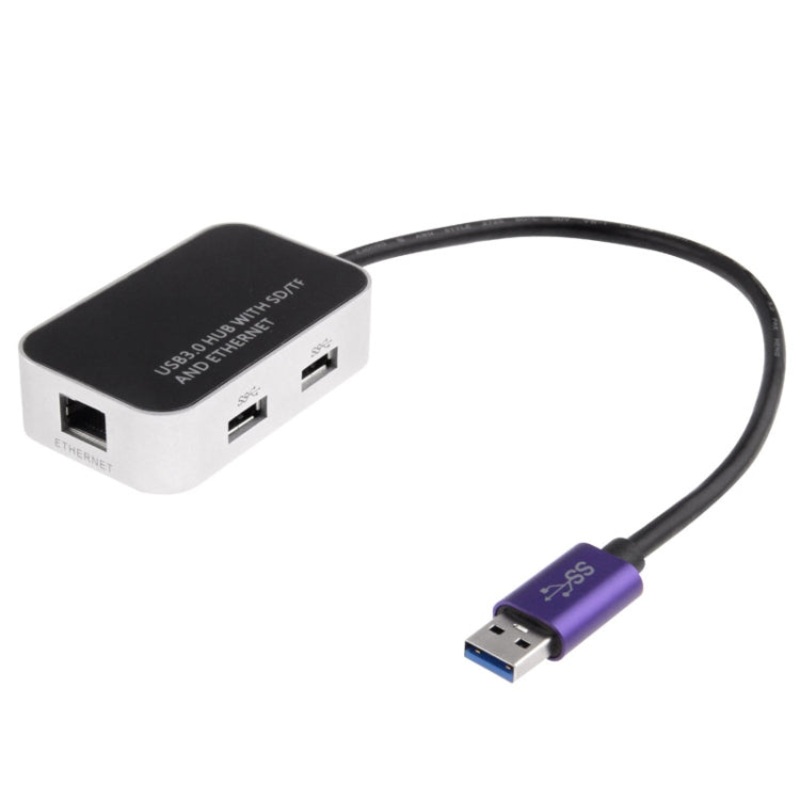

1) Name: USB 3.0 to gigabit Ethernet, card reader and two USB3.0 HUB interface

2) Card Reader interface:1 SD interface and 1 TF interface:support dual SIM card to read singly, USB3.0 speed

3) The full/half double work fast Ethernet connection

4) The USB power supply, dose not require an external power supply

5) Support functions of remote wake up and sleep

6) Ethernet: USB3.0 10/100/1000MHz network speed

7) 3.0 interface:USB3.0 Backwards compatible USB / 1.1 devices

Specification:

1) Color: Black with Silver

2) Size: 72mm x 43mm x 20mm

3) Package weight: 3.0 oz/84g

4) Cable length: 300mm

5) Driver: Configuration driven disc (USB3.0 to Gigabit Ethernet)

6) Power: USB3.0 power supply

7) Compatible Models: Windows XP/ Vista / Win7 / Win8 / MAC OS x10.410.8/ Nintendo / Nintendo Wii u/chrome-book

Package included:

1) 1 x USB 3.0 to gigabit Ethernet+card reader with two USB3.0 HUB interface

2) 1 x CD

3) 1 x User Manual

How to use:

1) Functional interpretations

– USB3.0 gigabit Ethernet connect your device via USB connection to the network, suitable for notebook with USB interface, the Super, Desktops, when your equipment (such as apple Mac-book air Microsoft surface, Idea Pad, etc. which has with no Ethernet interface. And this device can provide you most convenience. It use USB3.0 conversion chip, can let you experience USB3.0 advantage fully.

– The full/half double work fast Ethernet connection

– Support functions of remote wake up and sleep

– The USB power supply, does not require an external power supply

– Comply with IEEE802.3/100/1000 Mbps Ethernet MAC physical layer

– Two indicators: network cable connected to a green light,which is always on, data in yellow lights flashing

– The operating system: Windows XP/Vista/Windows 7 /Win8 /Mac OS x10.4 /Nintendo/Nintendo Wii u/ chrome-book operating system

2) USB3.0 card reader:

– Plug and Play (XP/VISTA/WIN7/8 or MAC OS8.6 up version)

– Connecting to the computer directly, use high speed USB3.0. Support hot plug.

– The way to read the card: a single dish, can only insert one memory card once

– The card reader speed: depends on SD card, TF card agreement sometimes

3) Two card slots respectively readable card type:

– SD card: SDHC/SD/MMC 11/RS MMS/ULTRALL SD/EXTREMR SD/EXTREMR LLL SD

– TF cardT-FLASH/MICRO SD

4) USB converter:

– USB interface to expand 2 USB3.0 interfaces with high-speed transmission

– Directly connected to the computer, do not need to drive

– Downward compatibility USB 2.0/1.1

– Support external device type: USB connect USB flash drive, mouse, sound, radiator, camera, mobile hard drives, solid-state drives, printers

– USB3.0 interface speed: the actual transfer rate is as high as 3.2 GB /Second (400 MB/s)

5) Install the driver:

– Insert CD discs into discs reader, click related CD information, open the CD information as shown in the figure below.

– Double-click the CD file (open as shown in the figure below). User please select the relevant system installation driver files such as (Windows XP / Vista / Windows 7 / Windows 8 / Mac OS x10.4 ~ 10.8 Nintendo / Nintendo Wii u / chrome-book) click open and install

– If user choose to install Windows 7 driver files, look at the picture below introduction to install Windows 7 driver is as follows:

— Click on the install file

— Found in the file “setup” application file, double-click to open, run the setup file as shown in figure:

— Click “next”

— Click on the “install”

— Is installing driver, please wait a moment.

— Install finished, click finish
