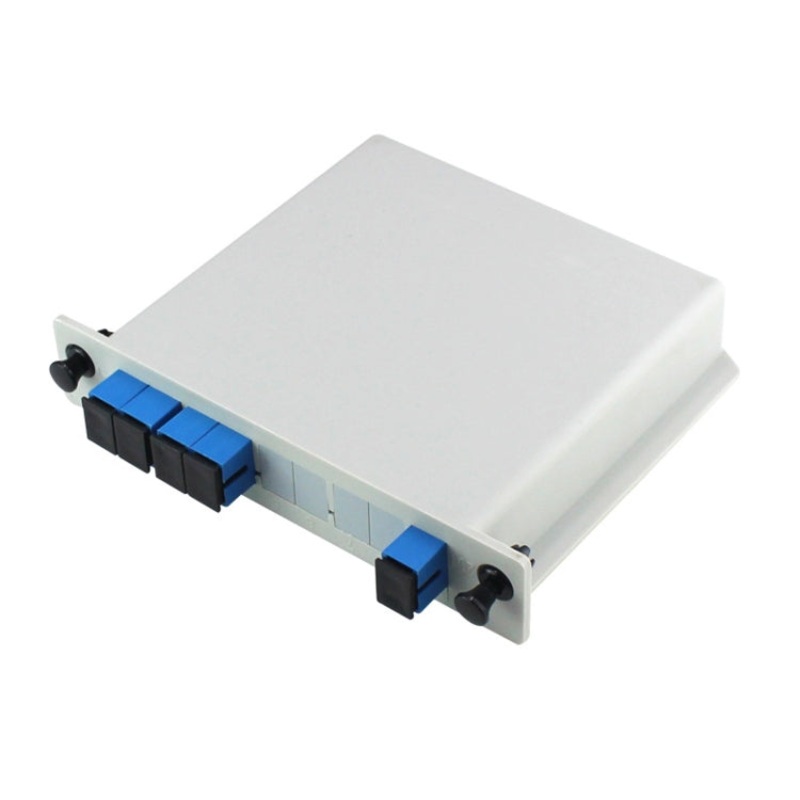

1. Carrier-grade standard insert type 1-4 optical splitter, low insertion loss, uniform light splitting
2. Low insertion loss, high return loss, good interchangeability, good repeatability, good temperature stability
3. Uniform light splitting and stable transmission using high-quality transmission chips
4. Ceramic ferrule, stable conversion
5. ABS raw materials have the characteristics of compression resistance, impact resistance, heat resistance, low temperature resistance, etc.
6. Wide range of uses, meeting the needs of different wavelengths, low insertion loss, and can be installed in various existing transfer boxes
7. Insertion times: 300 times
8. Insertion loss: 7.2dB
9. Working temperature: -40 to 85 degrees Celsius
10. Test wavelength: 1310nm
11. Working wavelength: 1260nm-1650nm
12. Number of interfaces: 5
13. Interface model: SC/UPC
14. Spectral uniformity: 0.8dB
15. Directivity: 55dB
16. Temperature stability: 0.6dB
17. Polarization dependent loss: 0.3dB
18. Wavelength dependent loss: 1.0dB
19. Return loss: 55dB
20. Dimensions: 130 x 112 x 26mm
