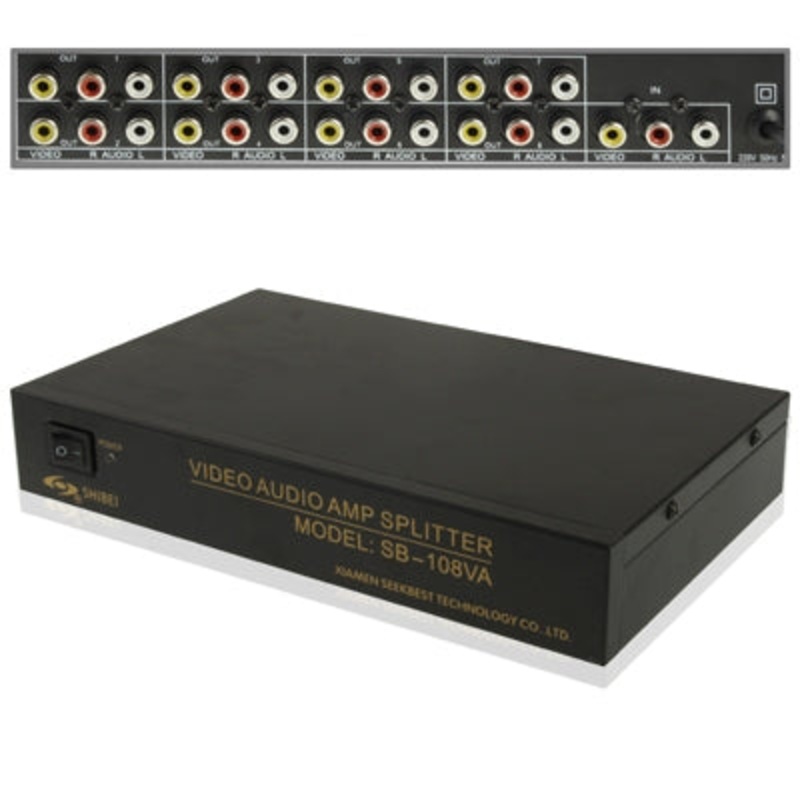

1) 1 into the AV input AV output 8 channels, DVD, or digital set-top box or receiver, or any one kind of video recorders and other AV output AV input and output of 8 groups (with eight TV sets at the same time display)

2) Can be used for families, schools, shopping centers, enterprises and institutions, public places, and so a group of more than one television AV signal input share

3) If the line is too long can be used more than one distributor output then output, better, such as: shopping a demo TV DVD sets, with the former a distributor after a group of output to the input of a divider in the middle with AV cable Connection

**Video:

1) Rated input signal level and impedance: VS0.8-1.0Vp-p/75

2) Rated output signal level and impedance: VS0.8-1.0Vp-p/75

3) Bandwidth: 50Hz-5.5MHz

4) Input 1 channel, output 8

**Audio:

1) Rated input signal level and impedance: 2V (RMS) / 47K

2) Rated output signal level and impedance: 2V (RMS) / 1K

3) Frequency: 10HZ-20KHz, 0dB

4) Input 1 / 2 Road (left and right channels), output 8 (left and right channels)

5) Power supply voltage: AC 220V 10%

6) 7W power consumption

7) Dimensions: 244 x 149 x 43mm
