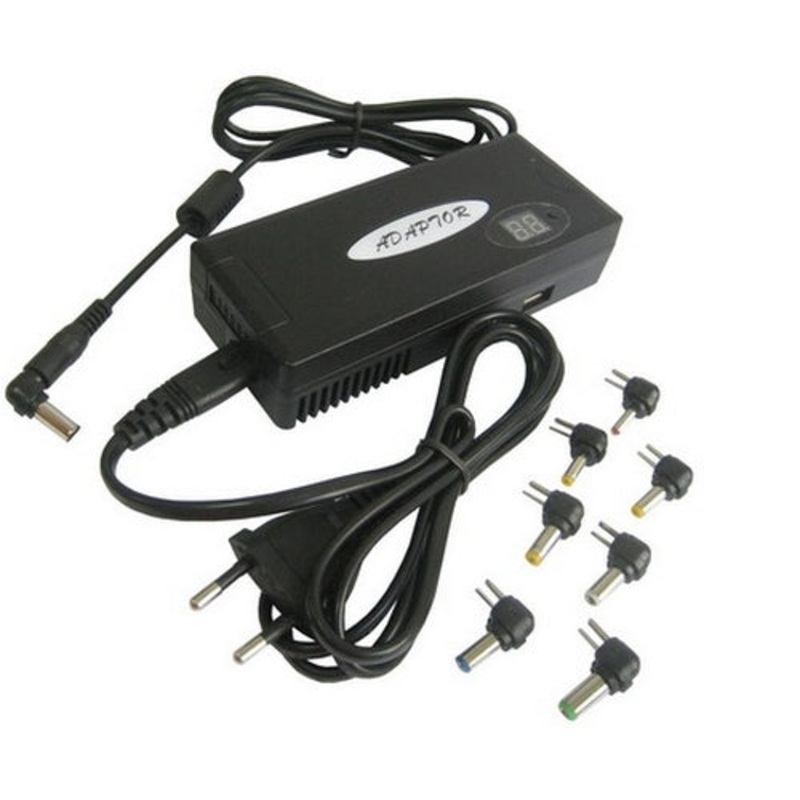

This model is a universal switching-mode power supply for laptop and LCD Monitor, operation at input AC95V to 264V 47-63Hz. Output: USB port: 5V @1, 5A max. DC 7 voltages: 12V/15V/16V/18V/19V/20V/[email protected] max, output power 90 watt max, with protection functions: Overload protection, Short Circuit Protection. Power supply by mains supply. With 8PCS tip connecter to suit to almost Laptops, Select output voltage to suit to Laptop and LCD Monitor. Make sure the polarity of tips connect correct before use.

Electric Characteristics:

1)Rated Input Voltage(47-63Hz): AC95V to AC264V, Vibration Input Voltage Range(47-63Hz): AC95V-265V

2)Input Rated Current: 1.5AMP, Input Power: 120W

3)Output power(max):90W, Efficiency:>85%(TYP)

4)Output voltage: 15V/16V/18V/19V/20V/22V/24V(-0.6/+0.6@rating load) Output current: 12V/15V/16V/18V/19V@5A MAX 20/24V@90W MAX USB PORT: 1A MAX@5V: DC 12V-24V 4.5AMP(max) USB PORT 5V 1A

5)Overload protection: YES

6)Short Circuit Protection: YES

7)Line Regulation: +/-5%

8)Load Regulation: +/-5%
