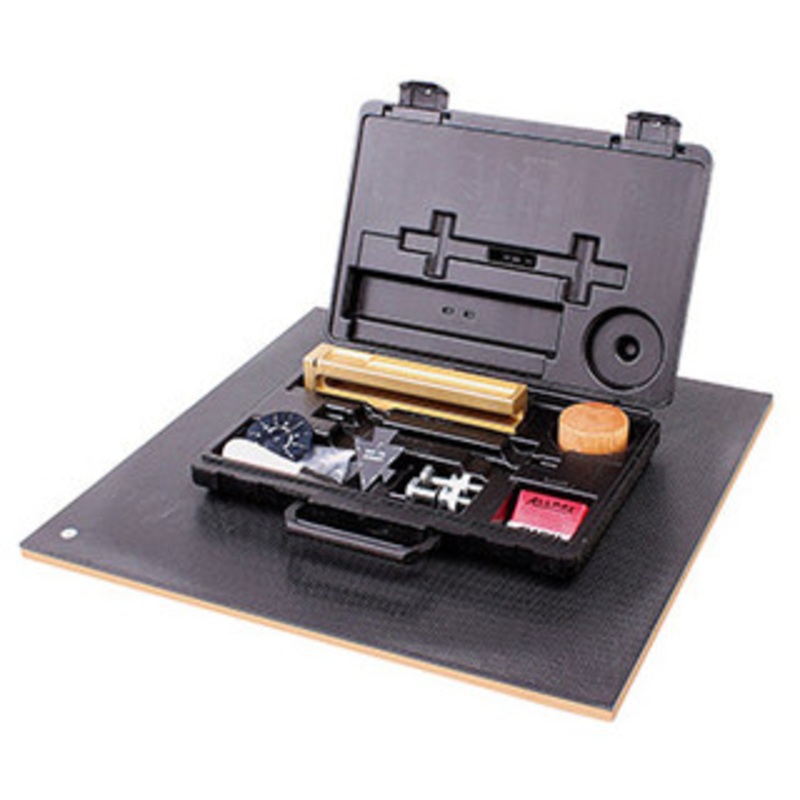

Allpax Heavy-Duty Standard Gasket Cutter Kit -AX6010

Extension-style kits feature premium, brass cutter block with contoured edges to minimize gasket material buckling and assure precision cuts. Ergonomic design offers secure, comfortable grip. Easy-to-read, engraved, precision scale. Sliding, knurled nut adjusts cutting radius. Chrome-plated, steel extension bars provide for cuts up to 61 (1550mm) in diameter. Hex screws hold cutting blade for cuts up to (19.05mm) in depth. 18 x 18 (457mm x 457mm) cutting board features plastic non-slip, textured surface that reduces blade friction, minimizes breakage, and self-heals after each use. Includes rugged storage case, dove-tail designer template, bolt hole locator template, and center pin handle.

Features:

• Premium, brass cutter block
• Standard-Duty and Heavy-Duty cutting blades
• Chrome plated, steel extension bars
• Rugged storage case
• 18″ x 18″ cutting board
• Made In the USA

Part Number Dimensions (in) Weight (lbs) AX6010 18.5 x 18.5 x 3.5 11.3

Kit Includes:

Product AX6010 Rep. Part Standard Blades 6 6 Heavy-Duty Blades 6 6 Boron Carbide Blades 0 6 Short Center Pin 1 6 Medium Center Pin 1 6 Long Center Pin 1 6 DiscPin 1 6 Center Pin Ferrule 0 1 Post with Offset Pin 1 1 Pivot Post 1 1 Extension Bar Pivot Post 0 1 Knurled Nut for Pivot Post 2 1 Knurled Nut for Extension Bar 0 1 Extension Bar 13″-25″ 0 1 Extension Bar Over 25″ 0 1 Cutting Knob 1 1 18″ Cutting BoardCenter Pin Ferrules (2) installed 1 1 24″ Cutting BoardCenter Pin Ferrules (2) installed 0 1 30″ Cutting BoardCenter Pin Ferrules (2) installed 0 1 Cutter Block Assembly 1 1 Storage Case 1 1 Center Pin Handle 1 1 Dove Tail Designer Template 1 1 Bolt Hole Locator Template 1 1
