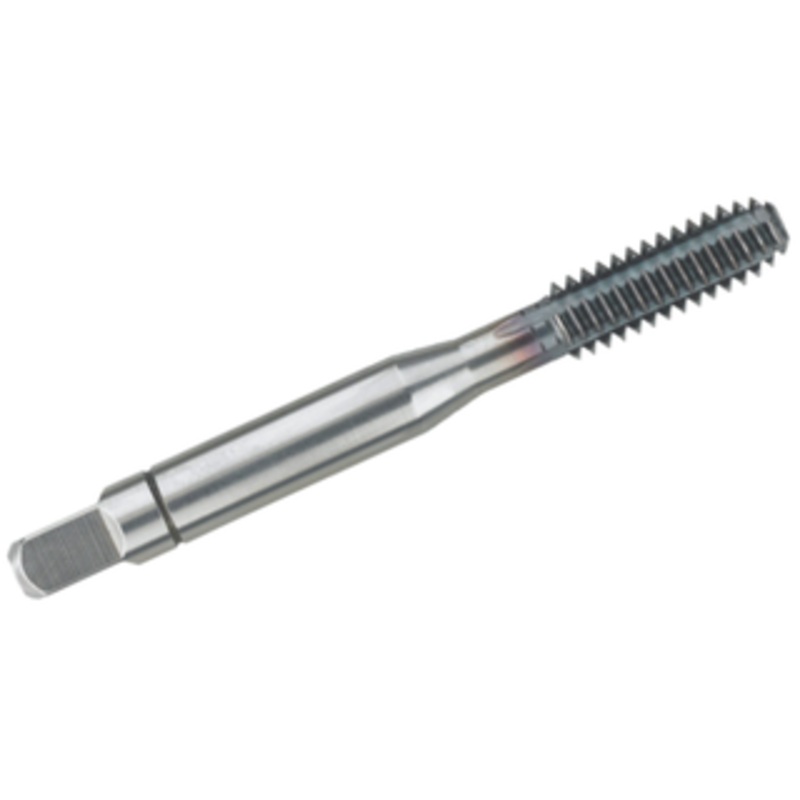

Balax Steel Bottoming Thread Forming Tap, #6-32 Thread Size, H5 Thread Limit

• Steel: TiCN coating supports steel tapping applications.
• Chip-less Tapping: Eliminates chip removal issues in blind holes.
• Stronger Threads: Effective on materials such as steel & stainless steel.
• Better Thread Gaging: Because no metal is cut away, the possibility of producing oversized threads is greatly reduced.
• Longer Tap Life: Forming taps last 3 to 20 times longer than cutting taps.
• Efficient Production: Less tap breakage, faster tapping speeds offers to reduce cycle time and machine downtime.
• Ideal for Non-lead Screw Tappers: Thredfloer Series Taps are especially well suited for CNC machines or other machines without lead screws.
• 0-degree helix angle with bottoming chamfer style.
• Pitch angle 60-degree.
• 2-1/2 inches chamfer.
• Right-hand cutting direction.
• Square shank with a smooth surface finishing.
• Class of Fit: 2B
• No. of Grooves: 2
