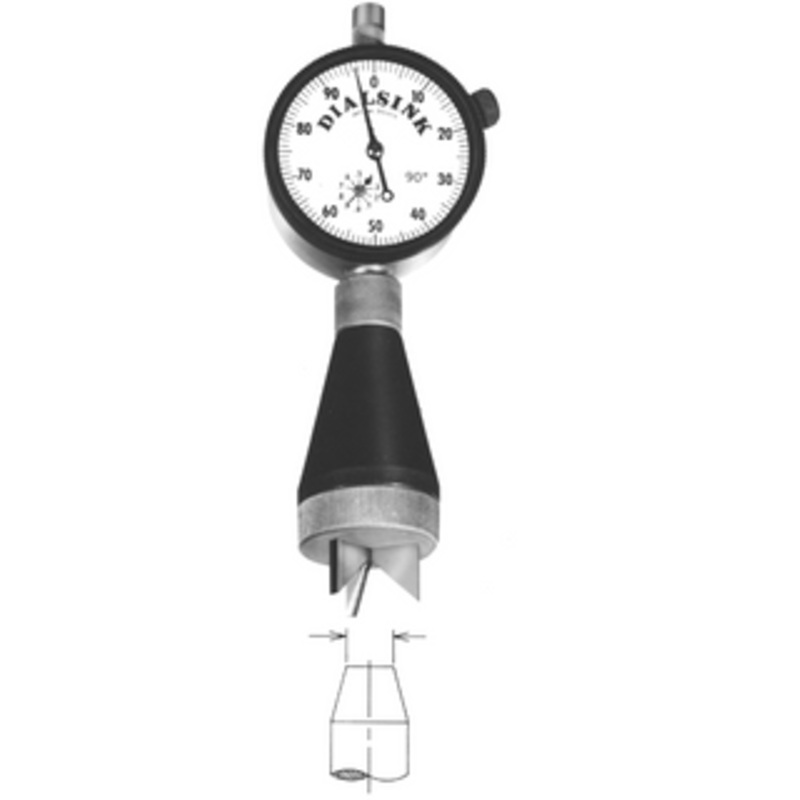

Barcor 2127-E , External Dial Chamfer Gage 90-127 Degree,

Range/Size: 1-2″

Quickly and accurately measure the top diameter of tapered holes

The BARCOR CHAMFER GAGE is a precision instrument specifically designed to measure the top (major) diameter of a chamfer, countersink, center drill, or tapered hole. Just press the spring loaded, conically ground, precision 3-blade Gaging Plunger into the chamfer or countersink and instantly read the dial in .001″ or .01mm/.02mm diameter increments.

The BARCOR CHAMFER GAGE is a direct reading instrument. The Barcor Chamfer gage does not require a setting master or standard. To “Zero” the gage or check the setting, press the base of the gage against flat ground surface and adjust the dial to read the “Set To” number stamped on the back.

The BARCOR CHAMFER GAGE is supplied with a hardened tool steel gaging plunger.

Ideal Applications:

Chamfers/Countersinks, Hydraulic Fittings, Screw Machine Parts, Aircraft Components, Production Machining, Automotive Assembly, Quality Control/Gage Room, Model Shop & Prototype, Receiving Inspection, Valve Seats, Rivet Seats, Tube Flares, Piston Rings, Shaft Centers, Instruments, Stampings, Castings, Bushings
