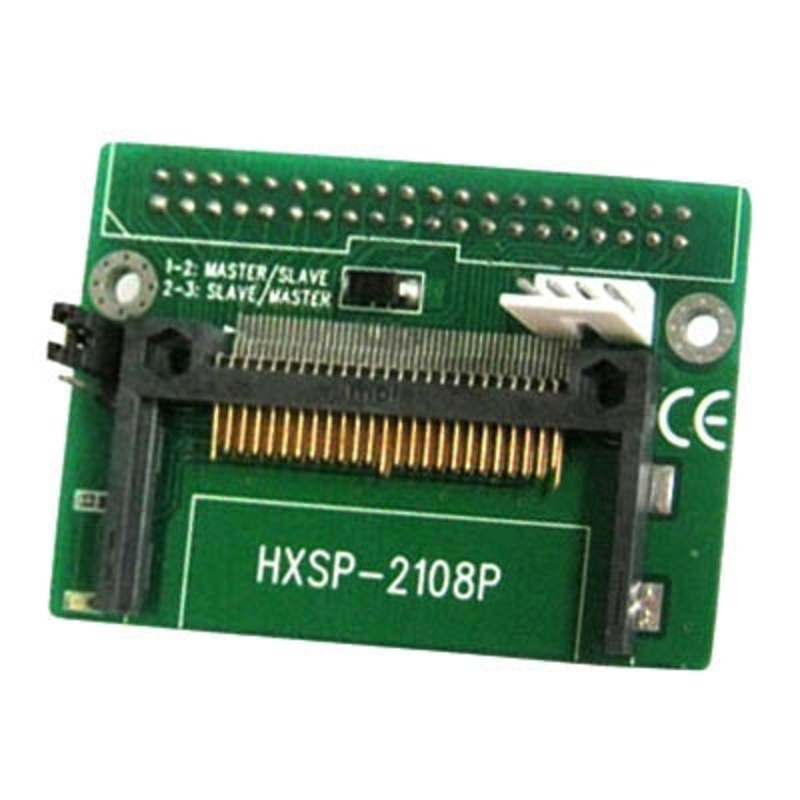

1)accord with: CF spec Ver 2.0 and IDE/ATA-33 spec

2)standard IDE interface: true-IDE mode, support DMA-33 transfer mode

3)support CF-I and CF-II: also support IBM micro-driver with CF-II interface

4)DE 40PIN/2.54mm or 44PIN/2.0mm female or male connector: plug card into IDE socket directly or connect to motherboard by a cable

5)CF socket mounted flexible: different CF socket can be mounted, single/double side selectable for double-side type

6)Master/slave jumper: CF card on each side can be configured as MASTER or SLAVE

7)Use CF as DOM: supply auto select from IDE 40 pin-20 or FDD power connector, or from IDE when use IDE 44
