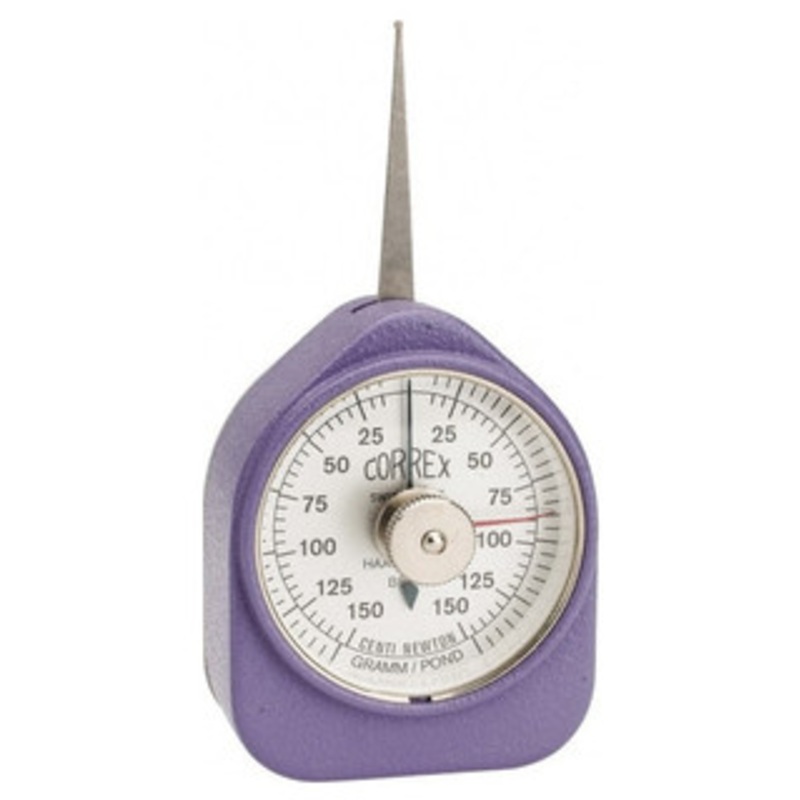

CORREX Tension/Compression Gage with Round Feeler Tip, Range: 5 – 50 grams

Mfg# 0333.0050 KM

For measuring small mechanical forces

Mechanical Tension & Compression Force Gage

The ideal instrument to measure, calibrate and standardize the pressure or power to actuate fine mechanisms and spring tensions of:

• Micro Switches and Relays
• Electric Contacts
• Business Machines
• Communication Instruments
• Precision Instruments & Gages
• Controls With Adjustable
• Friction Torque
• Automotive Parts etc.

Features:

• Maximum reading pointer eliminates reading errors, stops at highest force measured except .3 – 3 and .6 – 6 gages
• Measurements can be made in both directions, clockwise or counterclockwise
• Unbreakable glass protects the dial
• Available with flat or round feeler tips
• Furnished in protective case

ACCURACY: 0.01 X maximum dial reading + actual test reading

Bidirectional Applicable – Simple operation, easy handling

• The Correx Tension Gauge allows easy measurement of small mechanical forces. It generates a counter force with the feeler tip, until the subject is raised or takes the desired measuring position. The maximum indicator remains at the last highest power that has been achieved and can be read subsequently.

Simplicity Itself – Countless fields of application

The feeler arm must always be at right angles to the direction of the force. The measurements can be made in both directions clockwise and anti-clockwise.

Typical testing and checking include:

• Controls with adjustable frictional torque
• Spring tension in micro switches and all types of relay contacts
• Contacts etc. in motor vehicles

Specifications:

Graduation (g) 1.00 Accuracy (g) 0.01 x (Maximum Dial Reading + Actual Test Reading) Dial Diameter (Inch) 1-1/2 Dial Diameter (mm) 38.10 Feeler Length (mm) 31.75 Feeler Length (Inch) 1-1/4 Maximum Measurement (g) 50.00 Minimum Measurement (g) 5.00 Tip Type Round

See all CORREX Tension/Compression Gages
