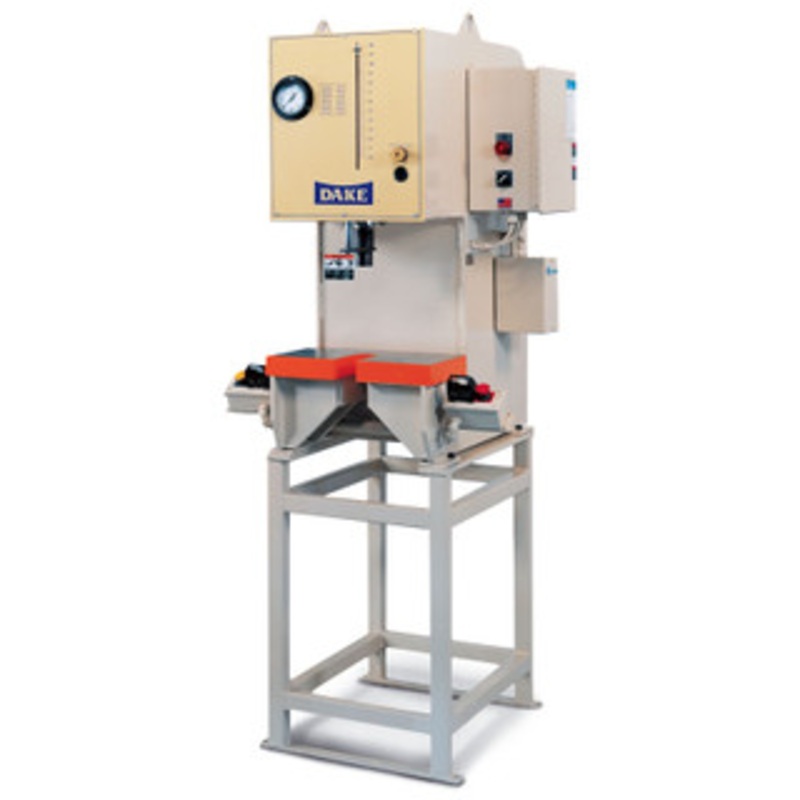

Dake Bench Presses, C-Frame

• Adjustable return stroke, activated by proximity switch, permits accurate control of ram movement.
• Light-sensitive thumb pads must be engaged simultaneously before ram will move and cannot be mechanicallly by-passed.
• Hydraulic cylinders are manufactured to withstand 3,000 psi, but are used at less than 2,000 psi to prolong service life.
• Remote pressure adjustment easily sets maximum pressure desired.
• Run-jog selector allows fast, easy job set-up.

Standard Equipment:

• For each press ordered, select the bolster, nose piece, and desired voltage that meet your needs.
• Nose pieces available. Select one. 1. Threaded nose piece. 2. Flanged nose piece.
• Bolsters can easily be removed and replaced for different jobs.
• Select one for each press ordered.
• Additional bolsters are available as optional equipment. 1. Plain bolster 2. Bolster with U-slot 3. Bolster with bored hole.
• Voltages available. Select one. 1. 208 volts, 3 phase 2. 230 volts, 3 phase 3. 460 volts, 3 phase 4. 575 volts, 3 phase.

Specifications:

model 28-604 28-608 28-612 capacity (tons) 4 8 12 horsepower 1 2 5 rpm 1,800 1,800 1,800 ram speed- advance 510 481 511 ram speed- press 62 39 62 ram speed- return 475 447 474 ram thread dimensions 1″-14×1-1/… 1-1/2″-12x… 1-7/8-12×1-3/4 A throat (inches) 7-1/2 7-1/2 10-1/2 B table slot width (inches) 2-1/2 2-1/2 7 C ram travel (inches) 12 12 12 D maximum ram to table (inches) 12-1/2 12-1/2 14-1/2 E table to base (inches) 10 12 FxG table (inches) 18×11-1/2 18×11-1/2 23×19 HxI base (inches) 31×19-3/4 36×20-1/2 47-1/2×24-3/4 J height (inches) 49-1/4 50 58-5/8 weight (lbs) 1,229 1,355 2,460
