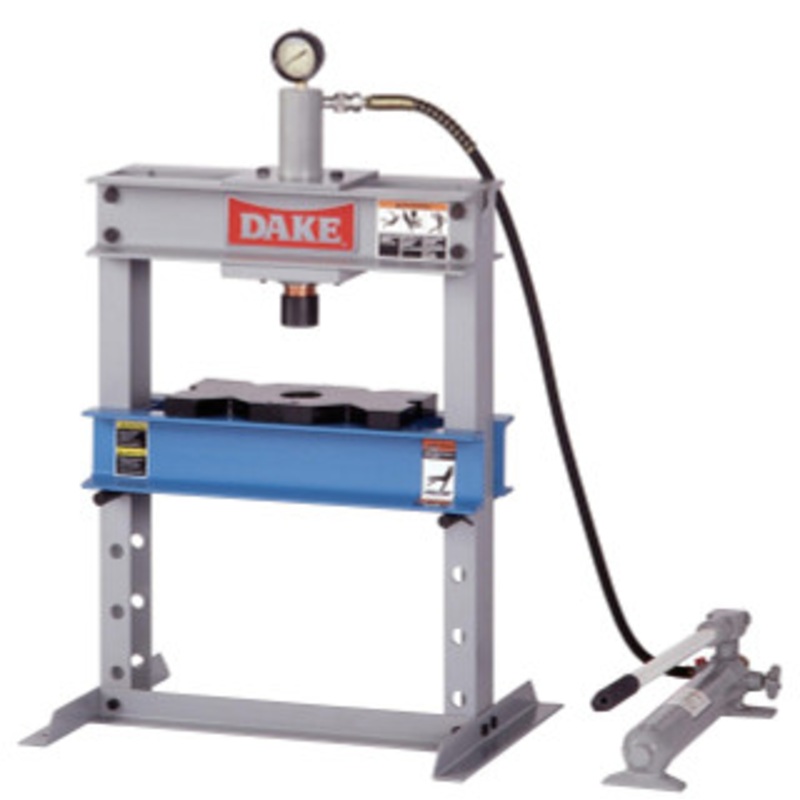

Dake H-Frame Utility Hydraulic Bench Press B-10, 10 ton, 36″ height – 972200

Features:

• Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation
• Convenient top mounted gauge reads in tons and psi to monitor pressure
• Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
• Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
• The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces

Standard Equipment:

• Frame
• Flat Ram Nose
• Combination Table Plates/V-Blocks
• Step Reduced Ram Nose

Specifications:

Model B-10 Order Number 972200 Capacity 10 tons Operation Manual Horsepower n/a Voltage n/a Width between uprights 16-3/4″ Width between table channels 3 Minimum ram to table 4 Maximum ram to table 16 Ram travel 6 Screw Travel n/a Horizontal workhead travel n/a Footprint 23 x 18 Height 36 Weight 165 lbs Base 23 x 18 Ram advance speed n/a Pressing speed n/a RPM n/a Air Pressure n/a
