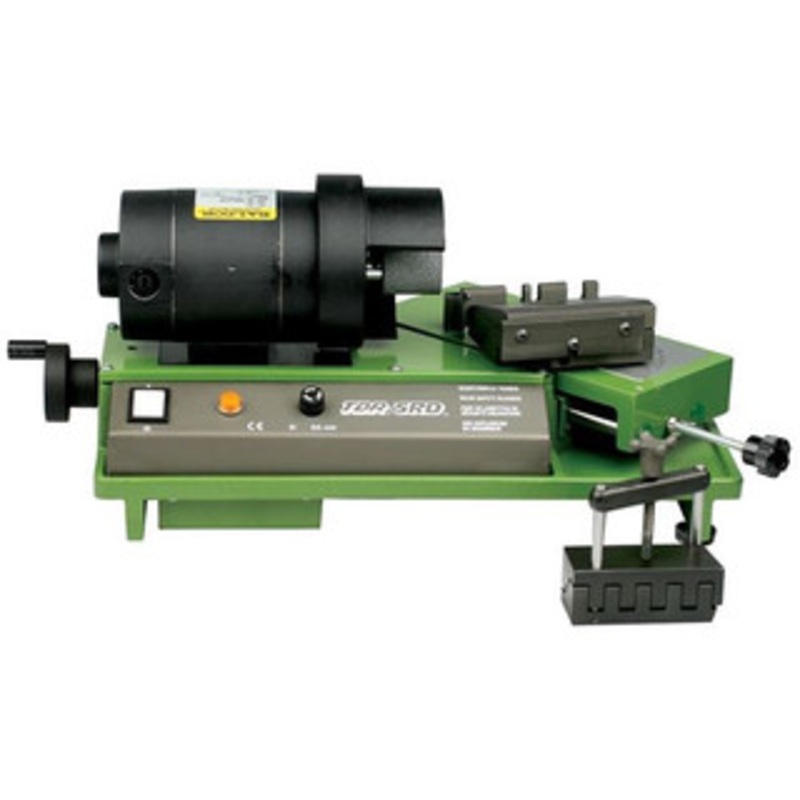

Drill Grinder 80-M Model TDR/SRD

80-M Basic Model

Sharpens standard drills, center drills and L.H. drills. Quick web thinning. Rugged construction. Always ready to be used. Known as a true workhorse!

• 80-M RH. Drills 1/16″-13/16″
• LHOP/M left-hand drill option 1/16″-1/2″


Customize point angles and clearances to achieve the most efficient feed rates for your job!

• Dimensions 10″W x l6″L x 8″H
• Weight 50 Lbs.
• Cast iron, aluminum & steel 7 construction
• Totally enclosed Baldor motor 1 10V or 230V
• Hardened and ground slide rails
• Drill size capacity and increased versatility varies with each model
• Precise results
• All models built to satisfy industrial quality
• Drill point concentricity is .001″Lip to lip
• Angle range 85 deg. to 160 deg.
• Relief angles 0 deg. to 20 deg.
• Sharpen high speed steel or carbide tooling
• Shipped via UPS
• Made in the USA

Grinding Range:

R.H. Drills 1/16″ – 13/16″

All machines come equipped to sharpen drills within the drill range specified.
(I.E. They come with the appropriate chuck and grinding wheel)
