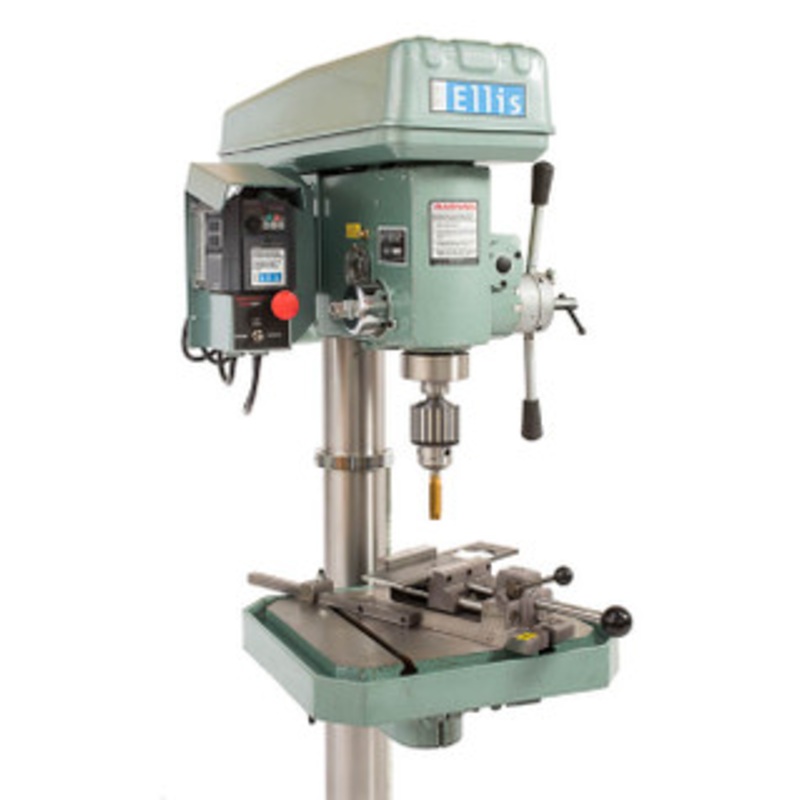

Ellis Drill Press Model 9400

Infinitely Variable Speed Drill Press

Features:

• Variable speed from 0 to 1200 rpm
• Adjust speeds while operating in the material
• High torque at low rpm speeds
• Instantaneous reversing for tapping
• Tapping head is not needed
• Machine tap goes into ball bearing chuck
• Can tap either left or right handed threads
• Drill head and table rotate 360 around column
• Smooth operating table raiser
• Fully enclosed spindle
• Quill lock and depth control
• Same ball bearing chuck holds both drill and tap

Speed Control:

• Continuous speed adjustment while in operation
• Instantaneous reversing for tapping
• One turn on knob for adjusting speed (0 to 1200 rpm)

Specifications:

Motor 2 HP A.C. single phase – choose 110/220V Control box – Infinitely variable speed with a turn of the dial
– Instantaneous electronic reversing
– Full torque at low speeds
– All solid state circuitry
– Continuous speed adjustment while in operation Spindle speeds 0 1200 RPM Drills to center 18-1/8″ Drilling capacity Steel: 1-1/16″
Cast Iron: 1-1/4″ Tapping capacity 3/4″ Morse taper No. 3 Quill diameter 3″ Column diameter 4″ Spindle travel 5-3/8″ Spindle to table (max.) 27-1/4″ Spindle to base 46-1/4″ Shipping weight 675 lbs. Table Production type:
T-slotted 15-7/8″ x 17-7/8″
2 Slots for 1/2″ T-bolts
ground working surface
coolant trough Base T-slotted
16-3/8″ x 26-5/8″
2 slots for 1/2″ T-bolts
ground working surface Size Height: 69-1/2″
Width: 20″
Depth: 29″
