Fowler 0-22 X-Depth 22-E Electronic Depth Gage

54-125-777-0

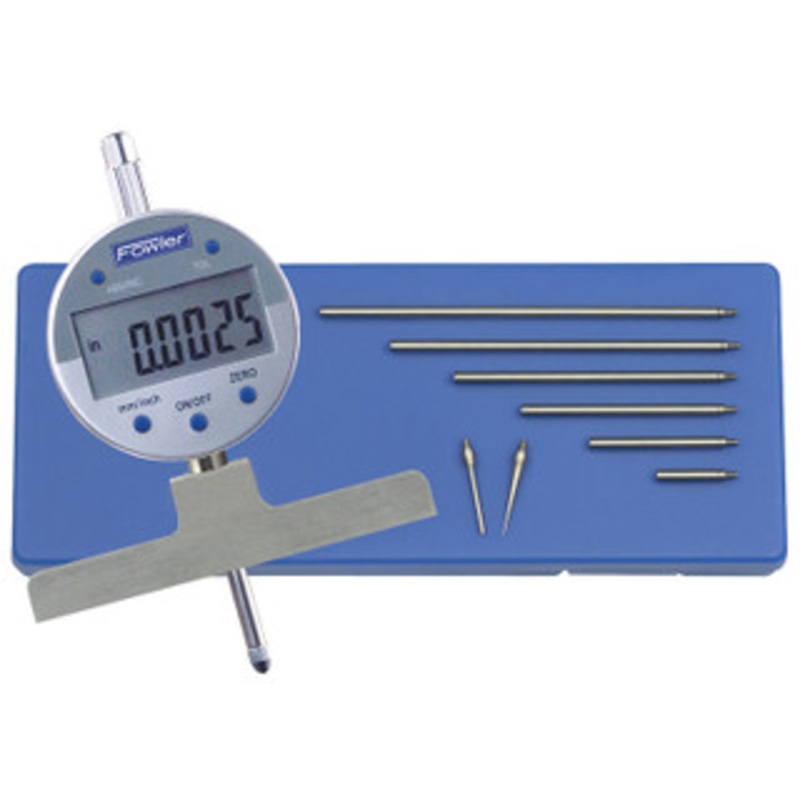

Fowler’s Electronic Depth Gage comes with six interchangeable rods with a 022″ capacity, carbide contact point and 2 extra points for small applications. Provides rapid electronic display measurement of hole depths.

Features:
Rod extensions of 1″, 2″, 3″, 4″, 5″ and 6″ are included. Rods can be connected together for a full 022″ capacity.
Includes 2 extra points for small hole applications; one 0.078″ dia. x 1″ long and one needle point x 1″ long.
Base is hardened steel, ground and microlapped for accuracy.
Base Size: 4″ x .630″
Standard 4-48 thread removeable carbide ball contact point.
Includes shop hardened case.

Indicator Features:
0-1″ travel electronic indicator with 3/8″ stem.
Resolution: .0005″/.01mm
Direct inch/metric conversion
Zero reset at any position
On/off button
Hold feature
Relative/absolute measuring

Range: 0-22/550mm
Resolution: 0.0005
Base Size: 4 x .630
