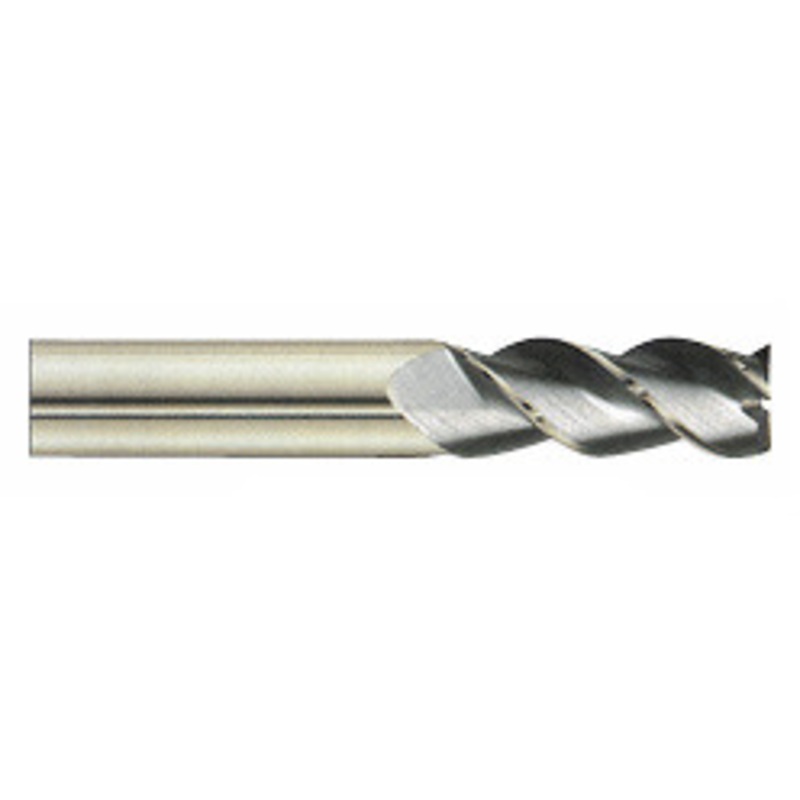

Fullerton Aluma Mill, Series 3835, 5/16″ Dia., 5/16″ Shank, 1″ Cut Length, Standard Length – 38352

For High Speed Machining of Aluminum

Series 3835 – 3 Flute Aluma-Mill

• The three flute Aluma-Drill with designed for improved finishes with slightly decreased chip loads in aluminum and non-ferrous materials.

Start machining at 50% of the suggested feed rates and slowly increase to the suggested feed rates. As rigidity and other variables may affect tool performance and life. Generally the above feed rates are applicable for machining a slot at a depth equal to the diameter to the diameter of the tool. For a deeper cut, feed rates will need to be decreased. Profile Milling: When using full cutting length, maximum radial depth is 50% of tool diameter. Slot Milling: Maximum depth of cut is = to tool diameter. Speeds & Feeds Formulas RPM = S.F.M./ Diameter x 3.82 I.P.M. = RPM x F.P.T. x 4
