Gar Master Visual-Tactual Set M-15

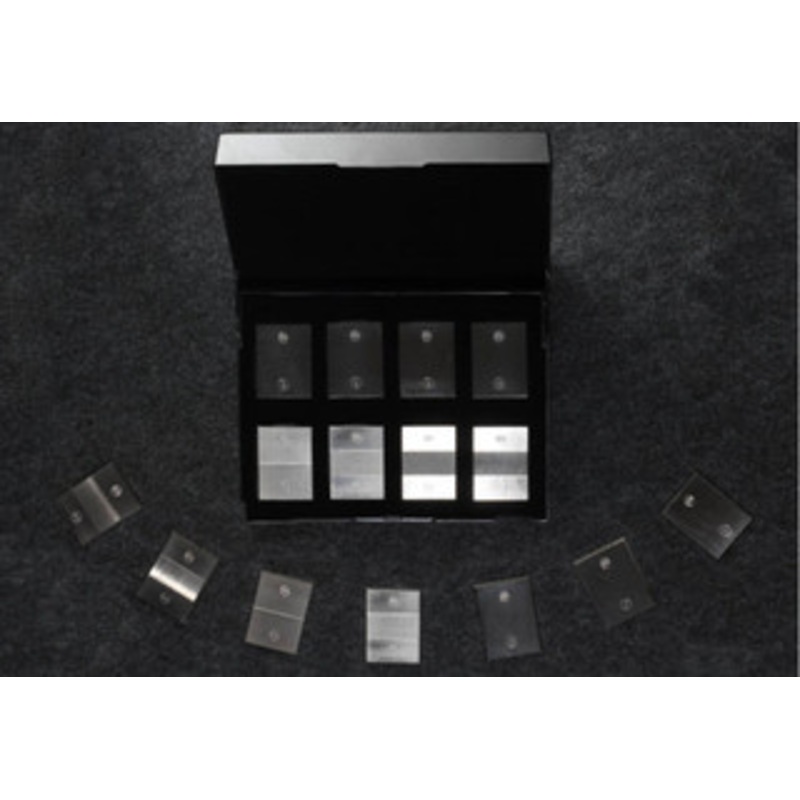

Master Visual-Tactual Set: Eight individual blocks with fifteen replicated machined surface finish specimens ranging from 2 to 125 microinches. The M-15 Master Set contains eight individual rectangular blocks (each measures 1 3/8″ x 1 7/8″). They are made of corrosion resistant electroformed nickel that are duplicates of actual conventionally machined surfaces. There are fifteen replicated machined surface finish specimens ranging from 2 to 125 microinches. The M-15 Master Visual-Tactual Set is supplied in a protective velvet-lined case complete with engineering data and instructions. Individual blocks are available and can be purchased separately

Catalog
Number

Roughness
Average

Machining Process

M 102

2

HONE LAP GRIND

M 104

4

HONE LAP GRIND

M 108

8

GRIND

M 116

16

GRIND

M 132

32

TURN OR SHAPE
GRIND

M 163

63

TURN OR SHAPE
GRIND
MILL WITHPERIPHERY

M 190

90

TURN OR SHAPE
END OR FACE MILL
MILL WITH PERIPHERY

M 225

125

TURN OR SHAPE
END OR FACE MILL
MILL WITH PERIPHERY
