HeliCoil Screw Thread Insert Thread Repair Kit #5403-4,
M4x0.7 Metric Threads, 6mm Insert Length

Features:

• Use for O.E.M. applications, or in repairs.
• Provides 60 internal screw threads.
• ISO 9001 Certified.
• Precision formed screw thread coils of 18-8 (Type 302/304) stainless steel wire having a diamond shaped cross-section.
• Cold rolled from round wire. Tensile strength of approx. 200,000 to 250,000 P.S.I. a hardness of 43-50 RC.
• Surface finish is 8-16 microinches. This wire is then wound into a spiral coil which, when installed into Heli-Coil tapped holes, provides permanent conventional 60 Internal Screw threads.
• The assembled insert accommodates any standard bolt or screw to MIL-S-7742 and MIL-S-8879 (UNJ controlled radius root) male threaded member.
• Inserts sold individually.

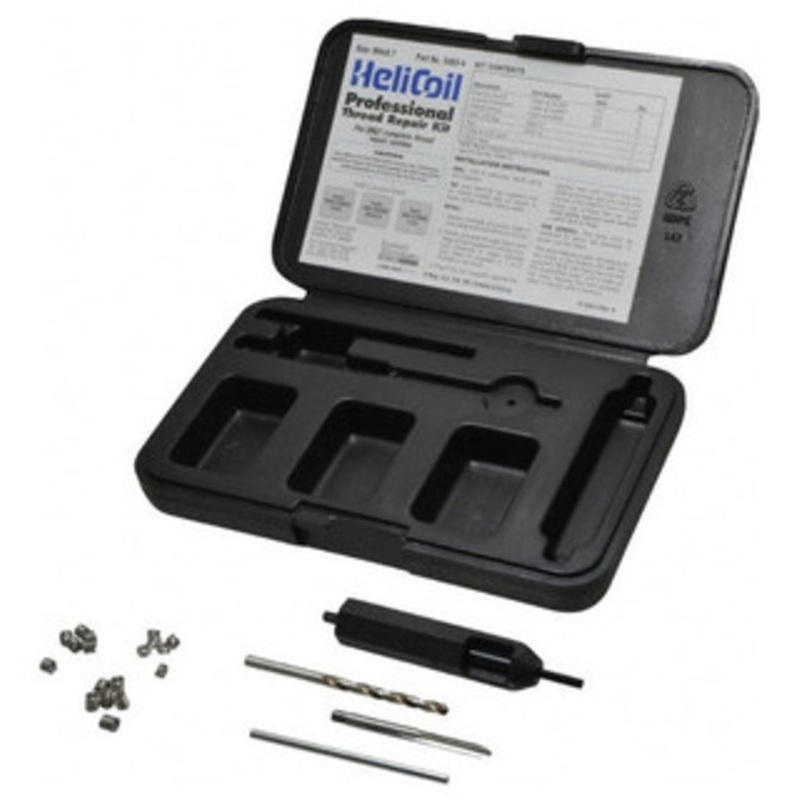

Each Kit Includes:

• Tap
• Drill
• Inserting Tool
• Inserts

Specifications:

Manufacturer Part # 5403-4 Insert Thread Size (mm) M4x0.7 Includes Drill Yes Includes Tap Yes Includes Installation Tool Yes Includes Tang Removal Tool Yes Kit Type Threaded Insert Number of Inserts 18 Long Insert Size 8.000 Short Insert Size 4.000 Insert Length (mm) 6.00 Number of Inserts for Each Size Length 6 Thread Standard Metric Coarse
