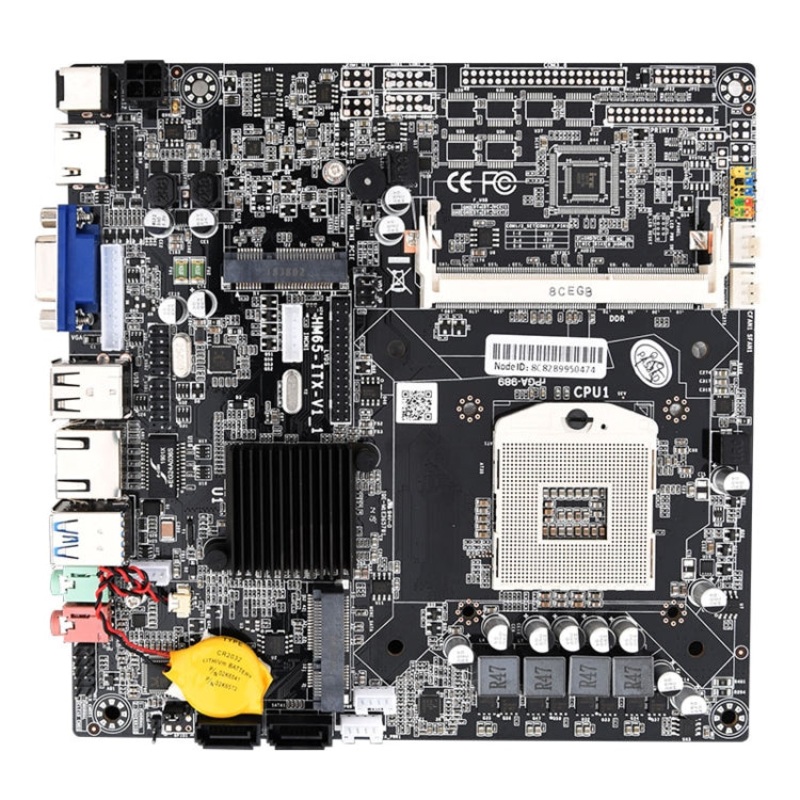

Product parameters:
1. Maximum memory peak: 8GB.
2. Board type: iTX.
3. SATA interface: MSATA 3.0 x 1, SATA x 2.
4. Expansion slot: 1 MPCIE, support Wifi.
5. Power connector: 4 Pin x 1, CPU power connector.
6. Network card: Gigabit adaptive network card.
7. USB interface: USB 2.0 x 8 (front 4).
8. CPU type: Support Intel i7 / i5 / i3 series processors.
9. Number of memory slots: DDR3 x 1.
10. Onboard sound card: integrated ALC662 channel.
11. Other interfaces: onboard VGA / HDMI / LVDS.
12. Motherboard size: 170x170mm.

Note:
Do not put on the case or screws before you receive the goods. In case the product does not meet your needs, install it after the system installation is complete and tested without any problems.
