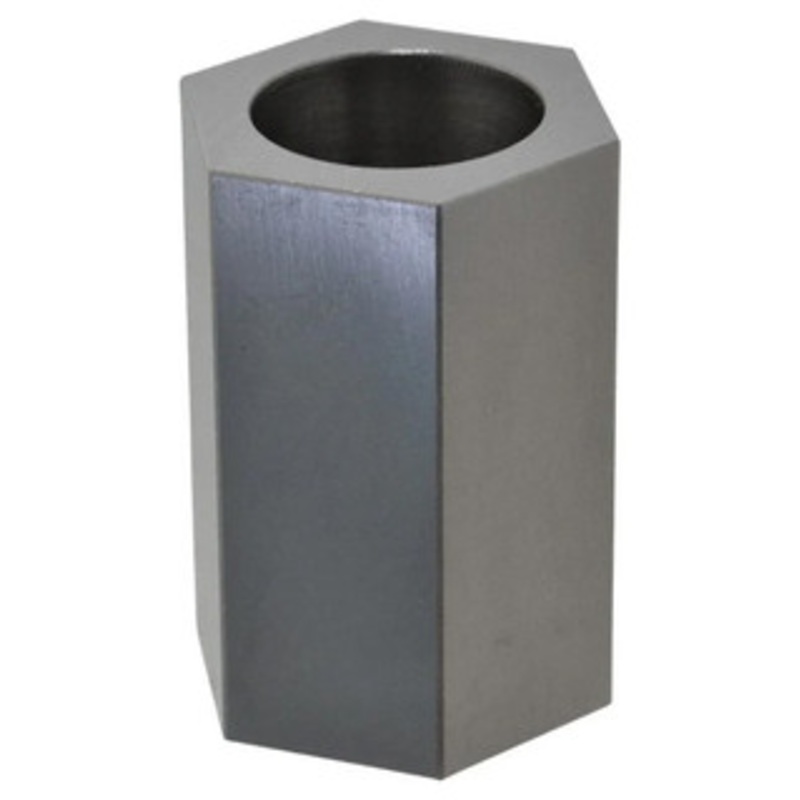

Interstate 5C Hex Collet Block Chuck with Standard Closer – 34-976-1

5C Collet Block Chuck – Hex with Standard Closer

Series 5C, 1/16 to 1-1/8″ Collet Capacity, Horizontal Collet Block Chuck, Manually Activated

Features:

• Uses all standard 5C type collets
• Made with square and hex bodies
• Used for machining round, square, or hex shaped parts or cross drilling at 60 or 90 intervals
• Blocks are supplied with standard ring closer
• Quick acting cam lever closer available, optional.
• Blocks can be held directly on a magnetic chuck or in a vise
• Hardened tool steel
• Capacity: 1/16″ – 1-1/8″
• Accuracy: Precision ground square and parallel to 0.0005″

Specifications:

See all Interstate 5C Collet Block Chucks & Set
