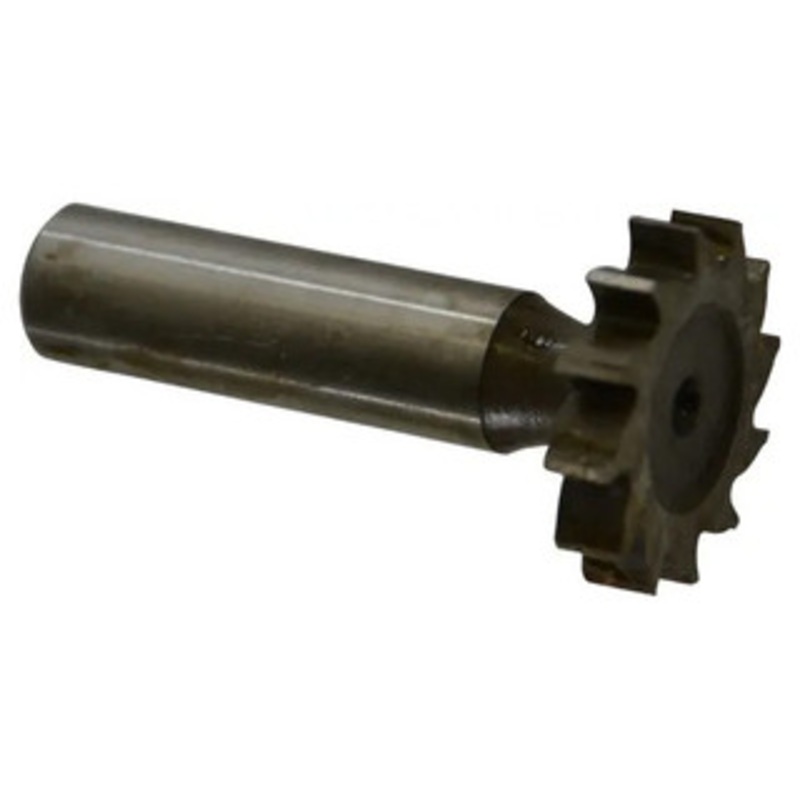

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/8″ Diameter, 7/32″ Face Width, 2-7/32″ OAL

High Speed Steel, 12 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-7/32″ OAL x 1/2″ Shank, Straight Teeth, ANSI 709, Old Standard 17

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number 17 American Standard Number (ANSI) 709 Cutting Diameter (Inch) 1-1/8 Cutting Diameter (Decimal Inch) 1.1250 Cutting Width (Inch) 7/32 Cutting Width (Decimal Inch) 0.2188 Tooth Configuration Straight Material High Speed Steel Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2.2188 Number of Teeth 12
