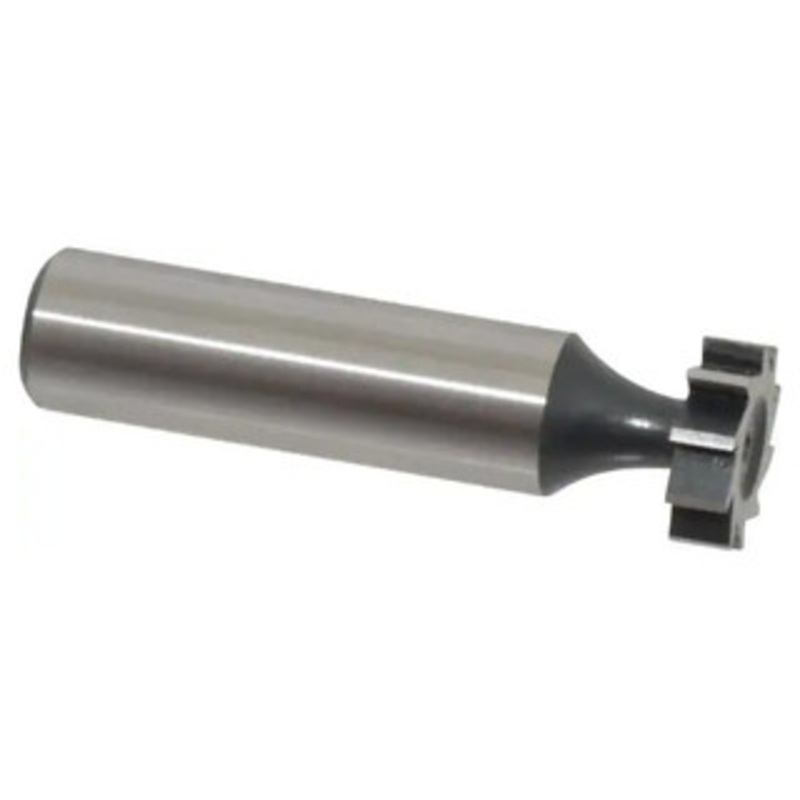

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 5/8″ Diameter, 3/16″ Face Width, 2-3/16″ OAL

High Speed Steel, 8 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-3/16″ OAL x 1/2″ Shank, Straight Teeth, ANSI 605, Old Standard 61

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number 61 American Standard Number (ANSI) 605 Cutting Diameter (Inch) 5/8 Cutting Diameter (Decimal Inch) 0.6250 Cutting Width (Inch) 3/16 Cutting Width (Decimal Inch) 0.1875 Tooth Configuration Straight Material High Speed Steel Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2-3/16 Number of Teeth 8
