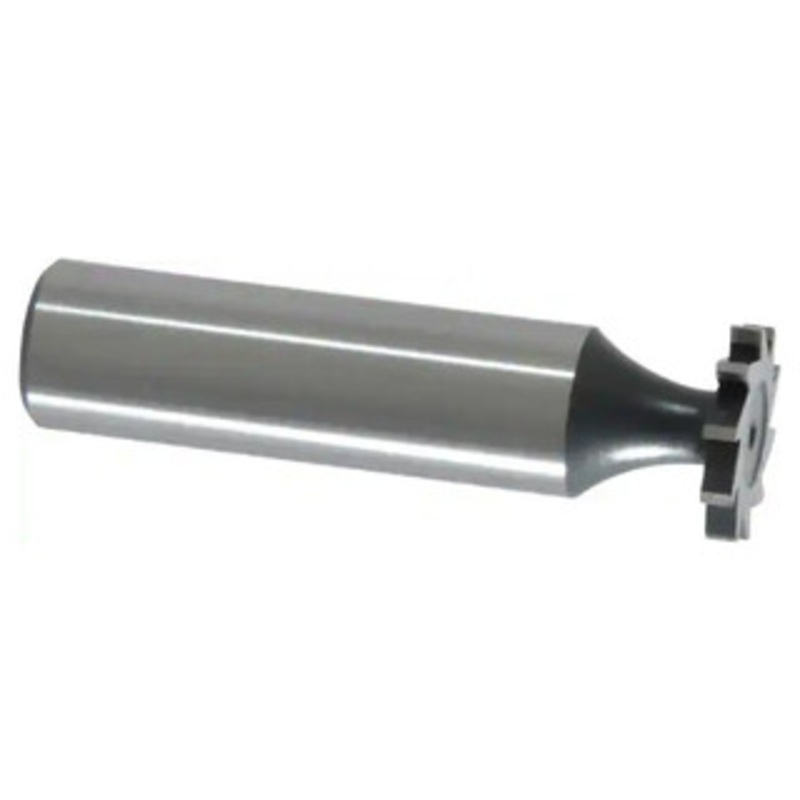

Interstate Straight Tooth Woodruff Key Seat Cutter, M42 Cobalt, 5/8″ Diameter, 3/32″ Face Width, 2-3/32″ OAL

Cobalt, 8 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-3/32″ OAL x 1/2″ Shank, Straight Teeth, ANSI 305, Old Standard 4

Features:

• 1/2″ straight shank
• Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
• Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
• Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.

Specifications:

Connection Type Shank Old Standard Number 4 American Standard Number (ANSI) 305 Cutting Diameter (Inch) 5/8 Cutting Diameter (Decimal Inch) 0.6250 Cutting Width (Inch) 3/32 Cutting Width (Decimal Inch) 0.0938 Tooth Configuration Straight Material Cobalt Finish/Coating Uncoated Shank Diameter (Inch) 1/2 Overall Length (Inch) 2.0938 Number of Teeth 8 Material Grade M42
