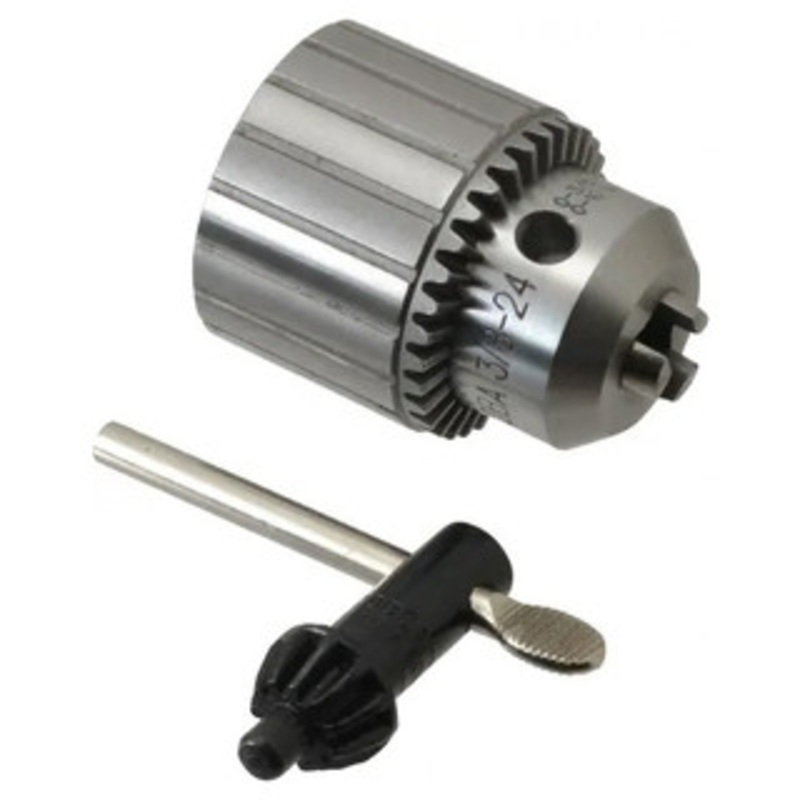

Jacobs Plain Bearing Keyed Drill Chuck, 3/8″-24 Mount, K2 Key, 0 – 3/8″ Range

Features:

• The JACOBS plain Bearing Chucks are the world’s most widely used.
• Medium duty for use on all types of floor, bench or portable machinery.
• Jaws are specially treated and centerground to ensure extended life and high gripping power.
• All working components are hardened and ground.
• Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
• Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
• Plain bearings are designed with a 1-piece gearing and sleeve for reducing teeth breakage. They are used for medium duty operations with stationary drilling, turning, milling and woodworking machines.

Specifications:

Manufacturer Part # JCM6219
2BA 3/8 Maximum Drill Chuck Capacity (mm) 9.53 Maximum Drill Chuck Capacity (Inch) 3/8 Maximum Drill Chuck Capacity (Decimal Inch) 0.3750 Minimum Drill Chuck Capacity (mm) 1.00 Minimum Drill Chuck Capacity (Decimal Inch) 0.0394 Mount Type Threaded Mount Mounting Size 3/8-24 Key Style Keyed Bearing Type Plain Bearing Material Steel Closed Length (mm) 71.37 Closed Length (Decimal Inch) 2.8100 Open Length (mm) 55.12 Open Length (Decimal Inch) 2.1700 Sleeve Diameter (mm) 42.42 Sleeve Diameter (Decimal Inch) 1.6700 Key Number K2
