Kalamazoo K10B 10″ Abrasive Chop Saw
3 HP, 3-phase 220V w/ Stand

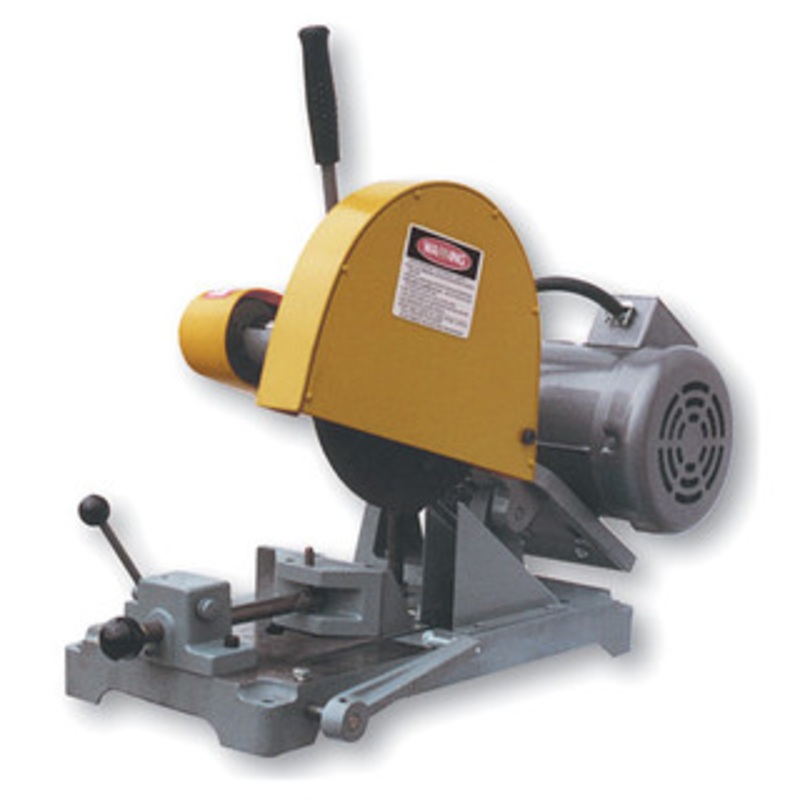

Kalamazoo Industries model K10B 10″ abrasive chop saw is designed to slice though most steel quick with the right cutoff wheel.

The K10B features a cam actuated swivel vise that opens up 4″, 3HP 1-phase or 3-phase motor and 5/8th inch spindle arbor.

This saw has the capacity to cut 1.5″ solids and 2.5″ pipe.

This unit is great for all size shops.

The K10B abrasive chop saw has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.

Features:

• Swivel cam vise opens 4″ fast, lever-lock. Work length stop.
• Capacity: 1 .5″ solids, 2 1/2″ pipe.
• 5/8″ arbor, sealed-for-life bearings,10 abrasive wheel, 3 HP
• Spindle RPM 3450
• Ground cast iron base and trunnion, cast aluminum upper saw arm
• Dimensions L 23″ x W 10″ x H 14″
• Options: Steel stand #12P, Foot operated chain vise (in place of cam vise) #K10SSF
• 1PH amp draws: 115V 24 amps and 220V 12 amps.
• 3PH amp draws: 220V 8.4 amps and 440V 4.2 amps.
• Shipping dimensions: L 24″ x W 36″ x H 28″
• Shipping weight: 195 lbs.
