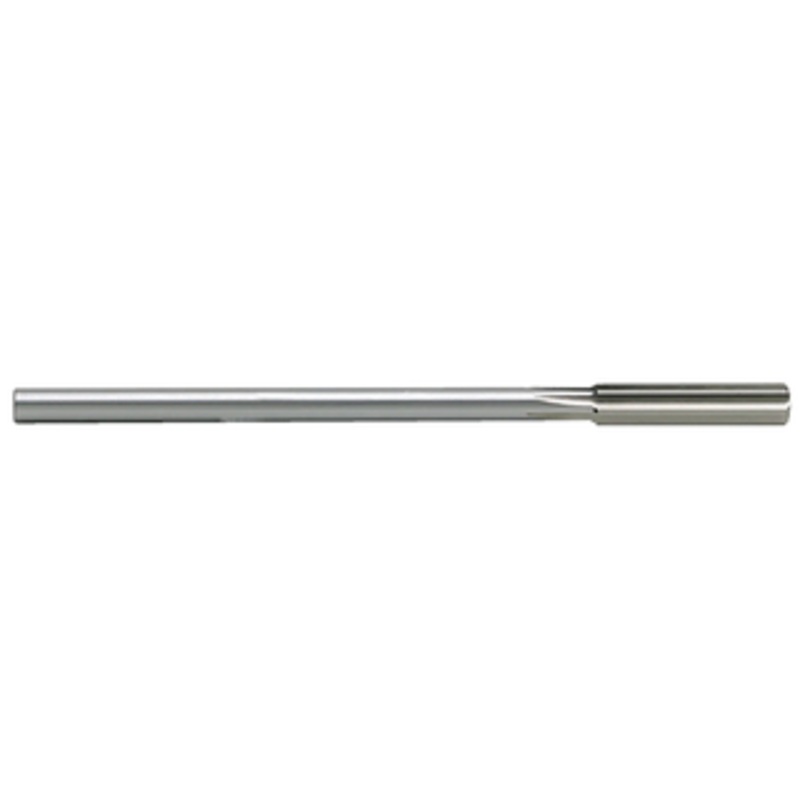

Lavallee & Ide Straight Flute H.S.S. Chucking Reamer, 1-1/16″ Size, 1.0625″ Decimal Diameter, 2-3/4″ Flute Length, 10-1/2″ Overall Length

• H.S.S. – High Speed Steel
• Series: 533
• Great hole finishing tool.
• Designed to resize drilled and bored holes to precise size diameters.
• Used to produce accurate holes in a variety of normal ferrous and non-ferrous materials.
• The round straight shanks may be mounted in chucks, collets or similar toolholders and may be used with a variety of standard portable or stationary machines.
• Suitable cutting oils or appropriate coolant fluids are recommended for most reaming operations.
• Overall length, flute length and shank diameters, are sized proportionally to the cutting diameter to permit maximum rigidity throughout the cutting depth of the tool.
• Combination of flute depth and shank diameter help to ensure adequate space for chips and reduce the contact area to reduce heat build-up.
• Pointed with a 45 chamfered end that forms the cutting edges, when resharpening, this 45 chamfer is the only area that should be ground.
• Easily resharpened.
• Ground from the solid.
• Straight flute design with bright finish.
• Cutting Direction: Right Hand
• Shank Style: Straight Shank
• Hardness: 58 to 60 RC
• Workpiece Material Range: Steel, Non-Ferrous, Cast Iron, Plastics
• Country of Origin: U.S.A.
