TheLyvia RG6 Dual Shotgun Coaxial Cable is a professional-grade twin cable designed for high-quality signal transmission in TV, satellite, and CCTV installations. Featuring two parallel RG6 coaxial cables joined in a shotgun configuration, it allows for easy twin-feed setupsideal for Sky+, Freesat+, dual LNB satellite connections, and multi-room systems.
Manufactured in Great Britain, this 100-metre reel offers installers and contractors a convenient, high-performance solution for domestic and commercial cabling requirements. The robust construction ensures low signal loss, long-term durability, and compatibility with a wide range of connectors and signal systems.
Key Features:
- Dual RG6 Coaxial Cables: Two cables joined side-by-side for simultaneous signal transmission or dual-feed systems.
- Ideal for Satellite and TV Systems: Perfect for Sky+, Sky Q (with adapter), Freesat+, and dual tuner PVRs.
- High Shielding: Each core features a solid copper-clad steel conductor, dielectric foam insulation, aluminium foil, and braid shielding for reduced interference and signal degradation.
- Durable PVC Jacket: Weather-resistant outer sheath protects cable integrity in both indoor and sheltered outdoor environments.
- Colour-Coded Cores: Easily distinguishable for correct channel routing.

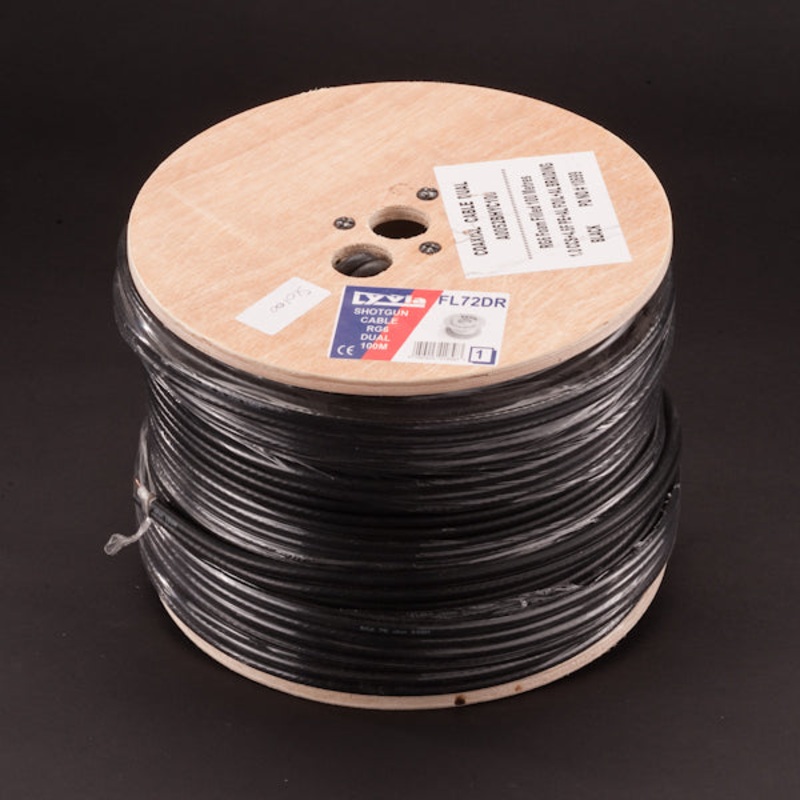

- 100 Metre Reel: Supplied on a roll for professional installation and bulk applications.
- Made in Great Britain: Assured quality and manufacturing standards.
Technical Specifications:
- Brand: Lyvia
- Cable Type: RG6 Dual Shotgun Coaxial
- Cable Length: 100 metres
- Core Type: Copper-clad steel conductor
- Impedance: 75 ohms
- Shielding: Aluminium braid + foil per cable
- Outer Jacket Material: PVC
- Colour: Black
- Operating Frequency Range: Up to 3 GHz (typical)
- Country of Origin: Great Britain
- Commodity Code: 8544429090
Dimensions:
| Specification |
Measurement |
| Cable Length |
100 metres |
| Diameter per Core |
Approx. 6.8 mm |
| Overall Width (Shotgun) |
Approx. 13.6 mm |
| Reel Weight (Est.) |
Varies by batch (approx. 68 kg) |
Dimensions and weight are approximate and may vary slightly.
Applications:
- Satellite TV installations (Sky, Freesat)
- Dual-feed LNB connections
- PVRs and satellite receivers
- RF signal distribution
- Multi-room and home entertainment systems
- Compatible with F-type connectors and compression fittings
Frequently Asked Questions (FAQ):
Q: Can this cable be used outdoors?
A: It is suitable for use in sheltered outdoor areas. For full exposure, additional conduit or weatherproofing is recommended.
Q: What connectors should I use with this cable?
A: Standard F-type compression or crimp connectors are compatible with RG6 cable.
Q: Is this suitable for CCTV installations?
A: Yes, the low-loss dual RG6 cable is commonly used in CCTV systems, especially when power and video must run parallel.
Q: Does the cable support 4K satellite signals?
A: Yes, the RG6 cable supports high-bandwidth signals, including 4K UHD satellite transmissions.
Q: Can I split the cable for single-feed use?
A: Yes, the shotgun cable design allows you to easily separate and use the cables independently if required.
Warranty Information:
The Lyvia RG6 Dual Shotgun Coaxial Cable 100m is backed by a 1-year limited manufacturers warranty. The warranty covers defects in materials and workmanship under normal installation and usage conditions. Damage due to improper handling, installation, or environmental exposure is not covered. Proof of purchase is required for warranty claims.
