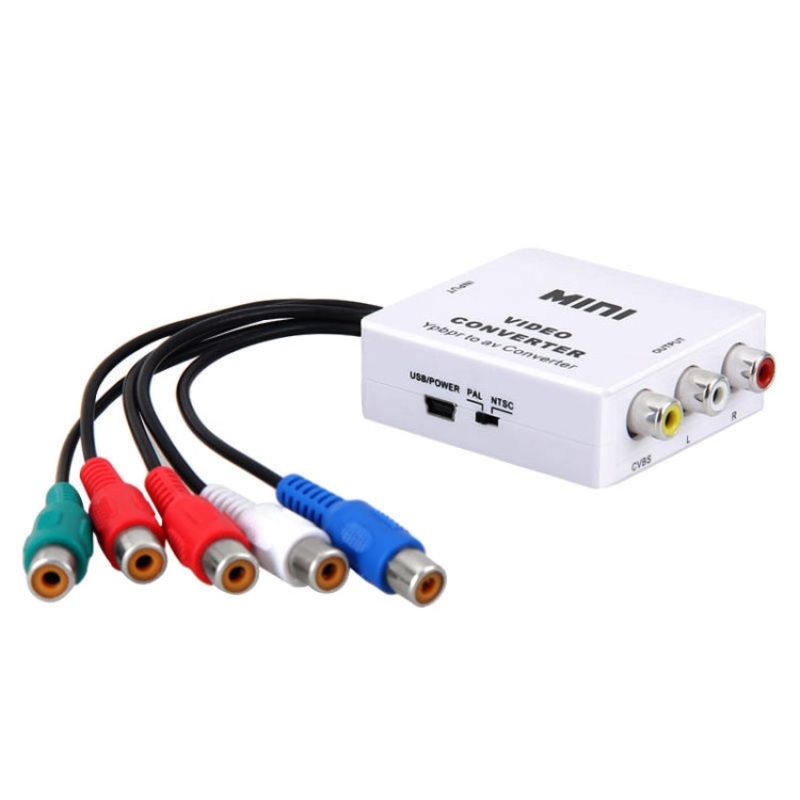

This is an YpbPr(Component) to CVBS scan converter. It is designed to convert a variety of analog component images, from 480i up to 1080p and converts them to NTSC or PAL standards video signal. It is ideal of using in applications like video conference, home theater, business presentation, lecturing room or viewing HD image on TV.

Features:

1) Supports high resolution HD input from 480i up to 1080p.

2) Supports component (YPbPr) input and scale down to Composite video output.

3) Switch between NTSC/PAL.

4) Auto phase to ensure better image display.

5) Easy to install and friendly to operate.

Packaging:

1) MINI YpbPr to AV Converter – 1PCS

2) 5V DC Power Supply Adapter – 1PCS

3) Micro USB to DC Cable – 1PCS

4) Operation Manual – 1PCS

Specifications:

1) Input Port: 1 x Component (Y/Pb/Pr+L/R)

2) Output Port: 1 x Composite Video+L/R

3) Input Resolution: 480i/p@60, 576i/p@50, 720p@50/60, 1080i@50/60, 1080p@/50/60

4) Output Signal: PAL/NTSC

5) ESD Protection: Human body model:

– 8 kV (air-gap discharge)

– 4 kV (contact discharge)

6) Power Supply: 5V DC/ 1A

7) Dimensions: 66mm x 55mm x20mm

8) Chassis Material: Plastic

9) Operating Temperature: 0C ~ 40C / 32 F ~ 104 F

10) Storage Temperature: -20C ~ 60C / -4 F ~ 140 F

11) Relative Humidity: 20 ~ 90% RH (non-condensing)

12) Power Consumption: 2W
