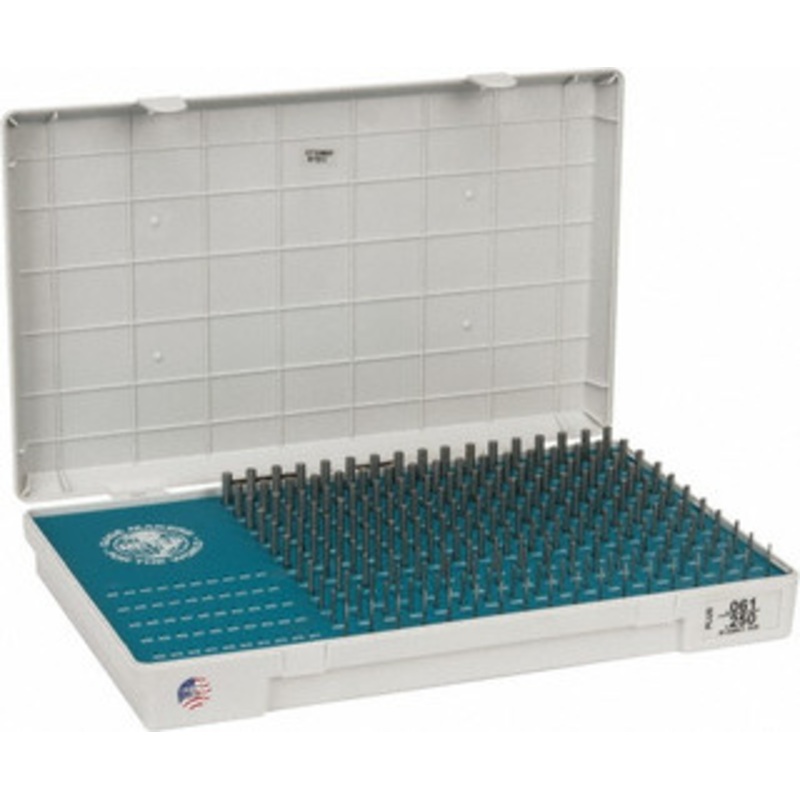

Meyer Pin Gage Set “X” Tolerance, 0.00004″ Limits- M05X+

100% Inspected for Accuracy

Offers the same “features” as our Class Z pin gages but with .00004″ tolerance limit and .00002″ roundness limit.

The pins are perfect for critical inspection needs or when you want to maximize your GO/NOGO tolerance limits.

They’re also a great way to calibrate measuring equipment, micrometers, and calipers.

Features:

• Center-less lapped
• Each gage is inspected and has a 2 micro-finish or better
• Heat treated to a hardness of 60-62 Rockwell C
• Size and serial number laser etched on each piece (M0X not etched)
• Material: 52100 Bearing Steel.
• No sharp edges.
• All members 2″ long

All Gages and sets are traceable to N.I.S.T.

Individual sizes available. Please Inquire.

See all Meyer Pin Gage Sets “X” Tolerance, 0.00004″ Limits

Meyer Pin Gage Set “X” Tolerance, 0.00004″ Limits- M05X-

100% Inspected for Accuracy

Offers the same “features” as our Class Z pin gages but with .00004″ tolerance limit and .00002″ roundness limit.

The pins are perfect for critical inspection needs or when you want to maximize your GO/NOGO tolerance limits.

They’re also a great way to calibrate measuring equipment, micrometers, and calipers.

Features:

• Center-less lapped
• Each gage is inspected and has a 2 micro-finish or better
• Heat treated to a hardness of 60-62 Rockwell C
• Size and serial number laser etched on each piece (M0X not etched)
• Material: 52100 Bearing Steel.
• No sharp edges.
• All members 2″ long

All Gages and sets are traceable to N.I.S.T.

Individual sizes available. Please Inquire.
