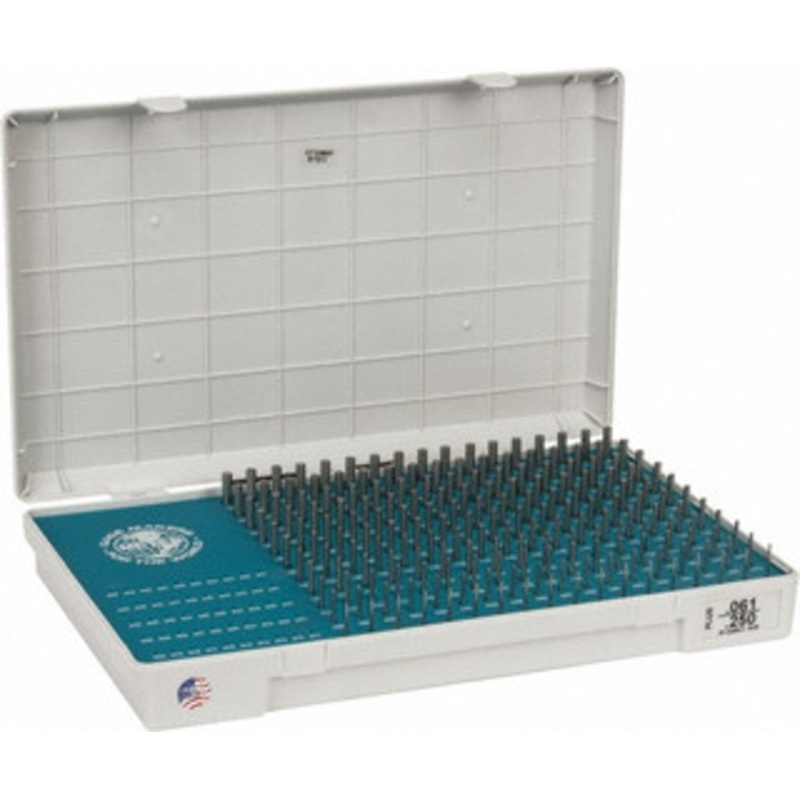

Meyer Steel Pin Gage Metric Set

NEW CLASS “Z” PLUS TOLERANCE

LASER THERMAL ETCHED – SIZE & SERIAL NUMBER

CLASS Z METRIC GAGE SETS

Just look at this selection of Metric gage pin sets. If we dont make it you probably dont need it! These sets have all the features of our English sets, but provide the finer increments in size that you just cant get by converting English to Metric.

FEATURES:

More features than gages costing twice the price.

• All gages and sets are traceable to N.I.S.T.
• Boxes and gages both marked
• Size and serial number laser etched on each piece (M-O not etched)
• Material: 52100 Bearing Steel
• No sharp edges
• 51mm overall length
• All sets in .02mm increments

USES:

• Checking locations
• Measuring hole sizes and depth
• GO & NO/GO gaging
• Setting micrometers
• Checking distances between holes

FINISH:

• Centerless lapped
• Each gage is inspected and has a 8 microfinish or better
• Heat treated to a hardness of 60-62 Rockwell C
• All metric gages with .0025mm tolerance limit

Individual gages also available in both Inch and Metric sizes, call to inquire.

Click to view all Metric Steel Pin Gage Sets

Meyer Steel Pin Gage Metric Set

NEW CLASS “Z” MINUS TOLERANCE

LASER THERMAL ETCHED – SIZE & SERIAL NUMBER

CLASS Z METRIC GAGE SETS

Just look at this selection of Metric gage pin sets. If we dont make it you probably dont need it! These sets have all the features of our English sets, but provide the finer increments in size that you just cant get by converting English to Metric.

FEATURES:

More features than gages costing twice the price.

• All gages and sets are traceable to N.I.S.T.
• Boxes and gages both marked
• Size and serial number laser etched on each piece (M-O not etched)
• Material: 52100 Bearing Steel
• No sharp edges
• 51mm overall length
• All sets in .02mm increments

USES:

• Checking locations
• Measuring hole sizes and depth
• GO & NO/GO gaging
• Setting micrometers
• Checking distances between holes

FINISH:

• Centerless lapped
• Each gage is inspected and has a 8 microfinish or better
• Heat treated to a hardness of 60-62 Rockwell C
• All metric gages with .0025mm tolerance limit

Individual gages also available in both Inch and Metric sizes, call to inquire.

Click to view all Metric Steel Pin Gage Sets
