Meyer Steel Pin Gages – Library Series

NEW CLASS “Z” MINUS OR PLUS TOLERANCE

LASER THERMAL ETCHED – SIZE & SERIAL NUMBER

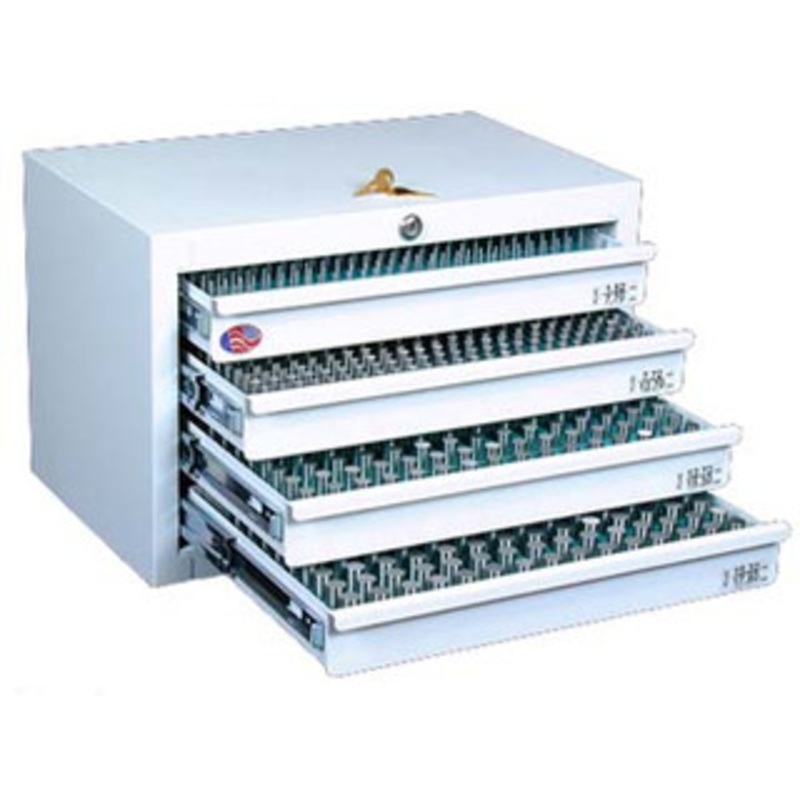

CLASS Z METRIC GAGE LIBRARY SETS

Just look at this selection of Metric gage pin sets. If we dont make it you probably dont need it! These sets have all the features of our English sets, but provide the finer increments in size that you just cant get by converting English to Metric.

FEATURES:

More features than gages costing twice the price.

• Boxes and gages both marked
• Size and serial number laser etched on each piece (M-O not etched)
• Material: 52100 Bearing Steel
• No sharp edges
• 51mm overall length
• All sets in .02mm increments

USES:

• Checking locations
• Measuring hole sizes and depth
• GO & NO/GO gaging
• Setting micrometers
• Checking distances between holes

FINISH:

• Centerless lapped
• Each gage is inspected and has a 8 microfinish or better
• Heat treated to a hardness of 60-62 Rockwell C
• All metric gages with .0025mm tolerance limit

Individual gages also available in both Inch and Metric sizes, call to inquire.

*** Please Specify MINUS or PLUS Tolerance in the Order Instructions/Comments box when checking out.
