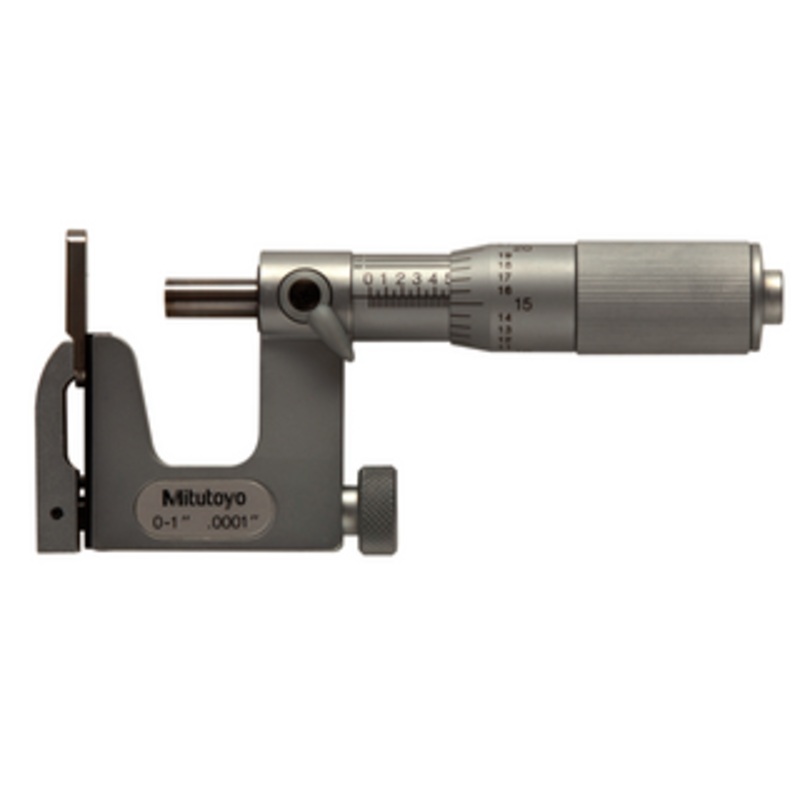

Mitutoyo Uni-Mike 11-796-0

0-1″x.0001″UNI-MIKE MITUTOYO

Mfg part# 117-107

This Micrometer Interchangeable Anvil Type lets you measure a range of different features.
It offers the following benefits:

• It is designed to accept interchangeable anvils shaped for specific tasks.
• You can use it to measure the wall thickness of tubes, as well as openings and slots from edge to edge, and features in hard-to-reach locations.

Range: 0 – 1 inch Accuracy: 0.0002″ Anvils included: 201217, 201216 Mass: 255 g Graduation: 0.01 mm Scale: Flatness: 0,6 m (spindle) 2 m (anvil) Parallelism: Parallelism: 3 m Measuring surfaces: Carbide tipped (spindle) Measuring spindle: With spindle lock, 6,35 mm, spindle pitch 0,5 mm Delivered: Including box, setting standard (from 25 mm upward), key, anvils Digital/Analog: Analog Inch-Metric: Inch
