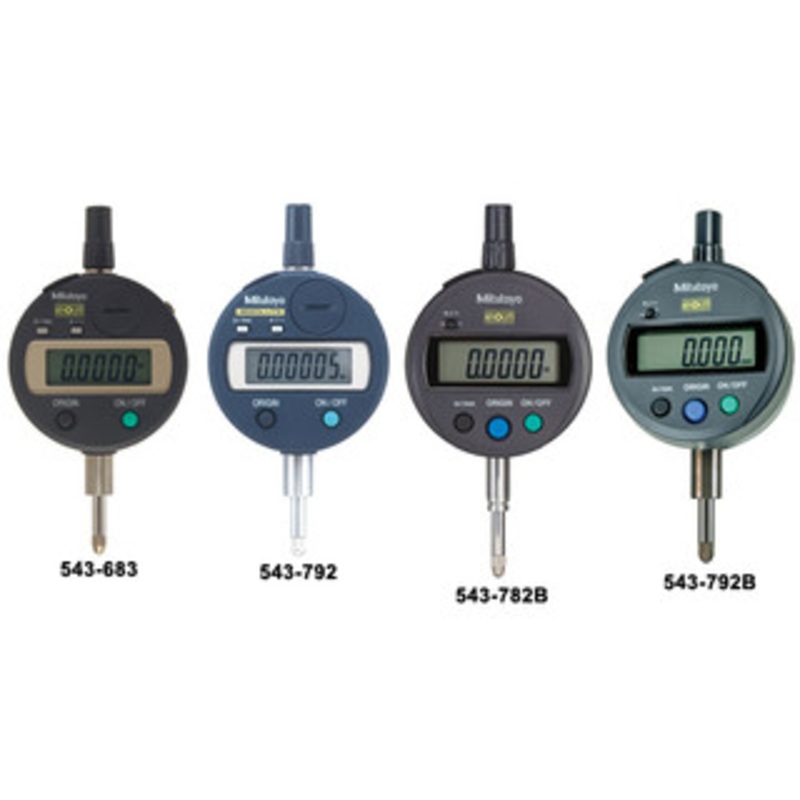

Mitutoyo ABSOLUTE Digimatic Indicators ID-S Series 543 with Simple Design

Features:

• As compact as standard Series 2 dial indicators
• After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
• Employing the ABSOLUTE linear encoder, the ID-S always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
• SPC data output

Technical Data:

Accuracy Refer to the list of specifications. Resolution 0.01mm
0.001mm
.0005″/0.01mm
.0001″/0.001mm
or .00005″/0.001mm Display LCD Length standard ABSOLUTE electrostatic capacitance type linear encoder Max. response speed Unlimited Measuring force Refer to the list of specifications Battery SR44 (1 pc.), 938882 Battery life Approx. 20,000 hours under normal use Dust/Water protection level IP42 (IP53:543-794, 543-795, 543-796) Function Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only) Alarm Low voltage, Counting value composition error, Over-flow error

Optional Accessories:

Type Inch/Metric (ANSI/AGD)
Stem dia. 3/8 , #4-48 UNF Thread Inch/Metric and Metric (ISO/JIS)
Stem 8mm, M2.5 x 0.45 Thread Accessory Item Number Item Number Back-Lug 101306 101040 Back-Flat 101039 101039 Lifting Lever 21EZA199 21EZA198 Lifting Cable 540774 540774 Lifting Knob 21EZA150 21EZA105 Connecting Cable 1m 905338 905338 Connecting Cable 2m 905409 905409 SR44 Battery 938882 938882
