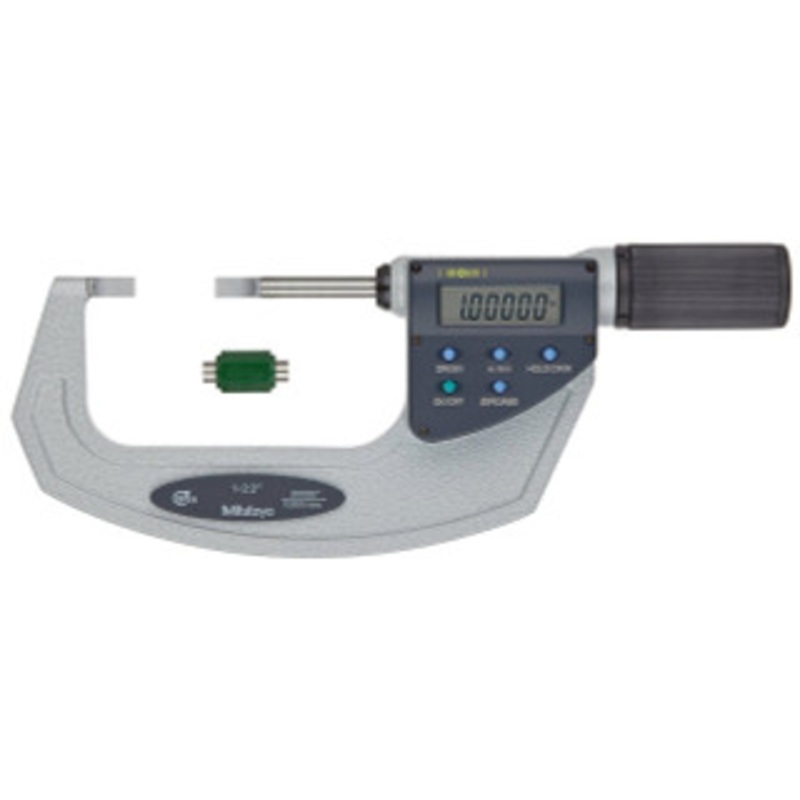

Mitutoyo Blade Micrometer Non-Rotating Spindle1-2.2″/25.4-55.88mm

Features

• The anvil and the spindle have a blade for measuring
  the groove diameter of shafts, keyways, and other hard-to-reach areas.
• With Ratchet Stop for constant force.
• Speedy spindle feed of 10mm / .4/rev. (Quickmike type).
• With a standard bar except 0 -25mm and 0 – 1 model.
• Supplied in fitted plastic case.

Technical Data

Accuracy: Refer to the list of specifications.
Resolution*: 0.001mm or .00005″/0.001mm
Graduation**: 0.01mm or .0001″
Parallelism: 3m / .00012 for models up to 75mm / 3
(3+R/100)m for models over 75mm,
R=max. range (mm) .00016 for 4 models
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
*Digital models **Analog models

Function of Digital Model

Origin-set, Zero-setting, Data hold, Data output, inch/mm
conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
