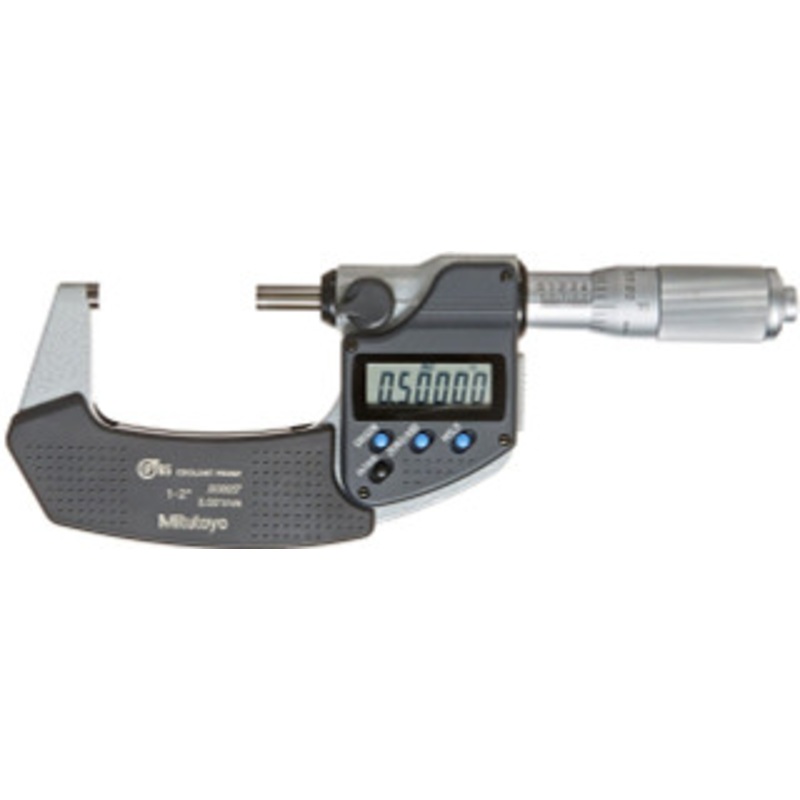

Mitutoyo Coolant Proof Micrometer – 293-336

Range: 1-2″ w/ Friction Thimble & SPC Output

with Dust/Water Protection Conforming to IP65 Level

FEATURES:

• IP65 protection level, enabling use in environments exposed to cutting oil, etc*
  *Anti-corrosion treatment is required after use.
• Measurement data output function is available with a water-resistant connection cable.
• Auto power ON/OFF function.
• Certificate of inspection* is included. (50mm/2 or less range models)
  *It is not the type used to obtain calibration certificates.
• With a standard bar except for 0-25mm/0-1″ model.
• Supplied in fitted case. Plastic case up to 150mm/6″, Wooden box over 150mm/6″

Technical Data:

Accuracy: Refer to the below list of specifications. Resolution: 0.001mm or .00005″/0.001mm Flatness: 0.3m/.000012 Parallelism: 1m/.00004 for models up to 50mm/2
2m/.00008 for models up to 100mm/4
3m/.00012 for models up to 175mm/7
4m/.00016 for models up to 275mm/11
5m/.0002 for models over 300mm/12 Measuring Faces: Carbide tipped Display: LCD Battery: SR44 (1 pc.), 938882 Battery Life: Approx. 1.2 years under normal use (8 months: over 100mm models) Dust/Water Protection Level: IP65 Function: Origin-set, Zero-setting, Automatic power on/off, Data hold, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error

See all Mitutoyo Coolant Proof Micrometers Series 293
