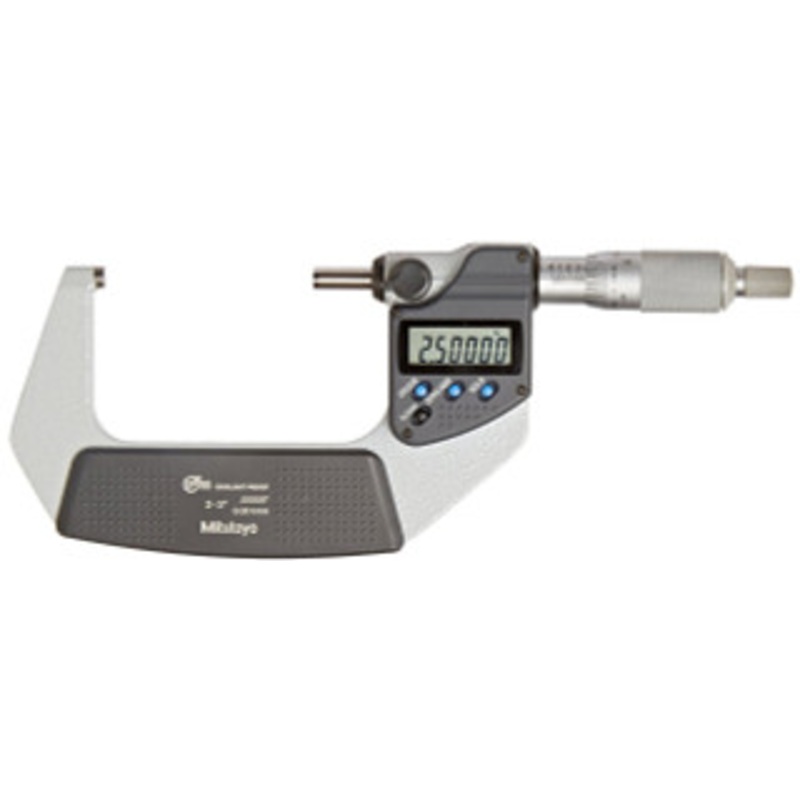

Mitutoyo Coolant Proof Micrometer – 293-342
Range: 2-3″ w/ Ratchet Stop
with Dust/Water Protection Conforming to IP65 Level
FEATURES:
- IP65 protection level, enabling use in environments exposed to cutting oil, etc*
*Anti-corrosion treatment is required after use.
- Measurement data output function is available with a water-resistant connection cable.
- Auto power ON/OFF function.
- Certificate of inspection* is included. (50mm/2 or less range models)
*It is not the type used to obtain calibration certificates.
- With a standard bar except for 0-25mm/0-1″ model.
- Supplied in fitted case. Plastic case up to 150mm/6″, Wooden box over 150mm/6″
Technical Data:
| Accuracy: |
Refer to the above list of specifications. |
| Resolution: |
0.001mm or .00005″/0.001mm |
| Flatness: |
0.3m/.000012 |
| Parallelism: |
1m/.00004 for models up to 50mm/2
2m/.00008 for models up to 100mm/4
3m/.00012 for models up to 175mm/7
4m/.00016 for models up to 275mm/11
5m/.0002 for models over 300mm/12 |
| Measuring Faces: |
Carbide tipped |
| Display: |
LCD |
| Battery: |
SR44 (1 pc.), 938882 |
| Battery Life: |
Approx. 1.2 years under normal use (8 months: over 100mm models) |
| Dust/Water Protection Level: |
IP65 |
| Function: |
Origin-set, Zero-setting, Automatic power on/off, Data hold, Data output, inch/mm conversion (inch/mm models) |
| Alarm: |
Low voltage, Counting value composition error |
See all Mitutoyo Coolant Proof Micrometers Series 293
