Mitutoyo D-EV Display Unit – 02ADD400

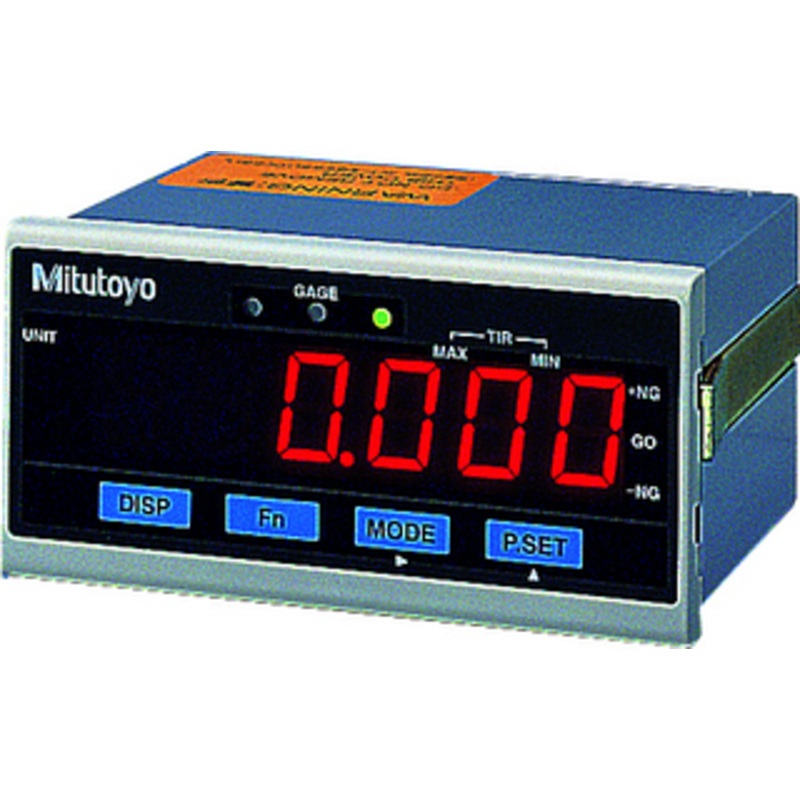

• Display unit for the EV counter.
• Allows set-up of EV counter without a personal computer or other equipment.
• Able to display each gage measurement value and GO/NG judgment result, total GO/ NG judgment result for all gages, setting details, and errors.
• You can connect up to six gauges, and by using the RS Link function, you can connect up to 10 EV Counters to one PC.
• Multi-point measuring systems with a maximum of 60 gauges can be configured.
• You can select several different output modes, including I/O output for tolerance judgement and Segment output, BCD data output and RS-232C output.

Specifications:

Order No 02ADD400 Number of connections 1 EV counter per unit Number of digits Sign plus 6 digits (8 digits internal to EV counter) LED display Channel display (also for judgment result display): 3 (3-color LED)
Measurement mode display (current data, maximum value, minimum value, runout): 2
Status display: 1 (2 colors) Operation switches 4 Function of operation switch Channel switching, measurement mode switching (current data, maximum value, minimum value, runout), parameter setting, presetting, tolerance setting Input/output RS Link connectors: 1 each for IN, OUT Error message Overspeed, gage error etc. Power supply Terminal block (M3 screw), 12 – 24V DC, 200mA Operating temperature (humidity) range 0 to 40C (RH 20 to 80%, no condensation) Storage temperature(humidity) range 10 to 50C (RH 20 to 80%, no condensation) External dimensions 96(W)48(H)84.6(D)mm
