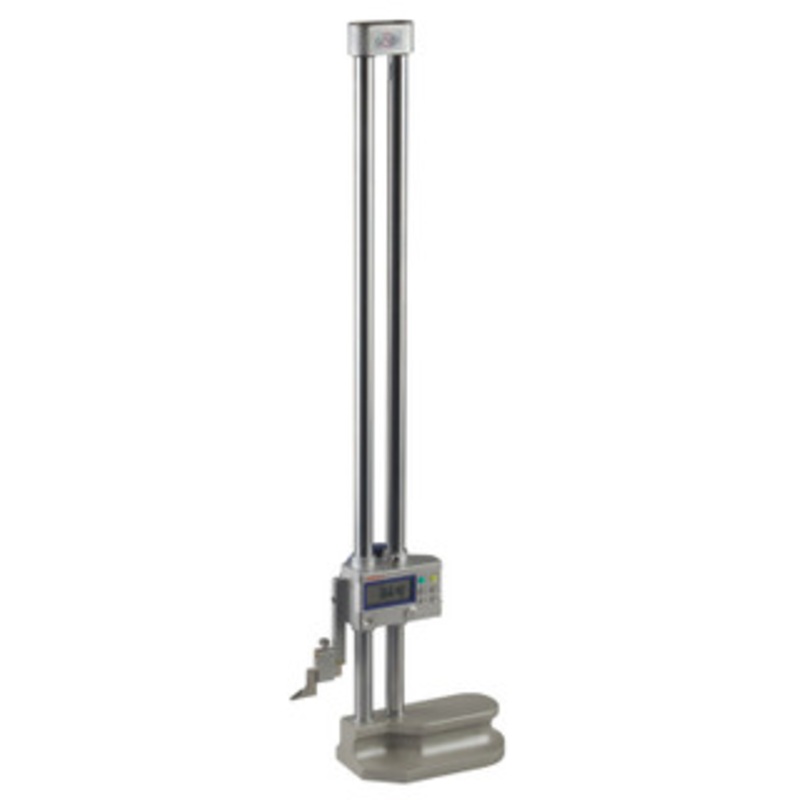

Mitutoyo Digital Height Gauge Double Column
0-24″/0-600mm, Digimatic

This is a high accuracy height gauge, and offers you the following benefits:

• Its double-column structure ensures high measuring accuracy.
• A carbide-tipped scriber is provided.
• Large character height of 11mm provides good readability.
• SPC data output.

Features:

• Switchable resolution (.0002/0.005mm or.0005/0.01mm)
• Easy-to-use standard type.
• Carbide-tipped scriber is provided.
• Double-column structure ensures high measuring accuracy.
• Coarse/fine feed switching.
• Two preset reference heights.

Specifications:

Range 0 – 24 inch Accuracy 0,05 mm/0.002″ Mass 10.4 kg Digital step 0,01/0,005 mm Max. response speed 500 mm/s Battery life approx. 3500 hours Display LCD, Character Height: 11 mm Delivered Including scriber, scriber holder, 1 battery and cover ZERO/ABS Yes PRESET (2 values) Yes SWITCHING Yes ON/OFF Yes DATA/HOLD Yes Low voltage alarm Yes Data output Yes Digital/Analog Digital Inch-Metric Inch/Metric
