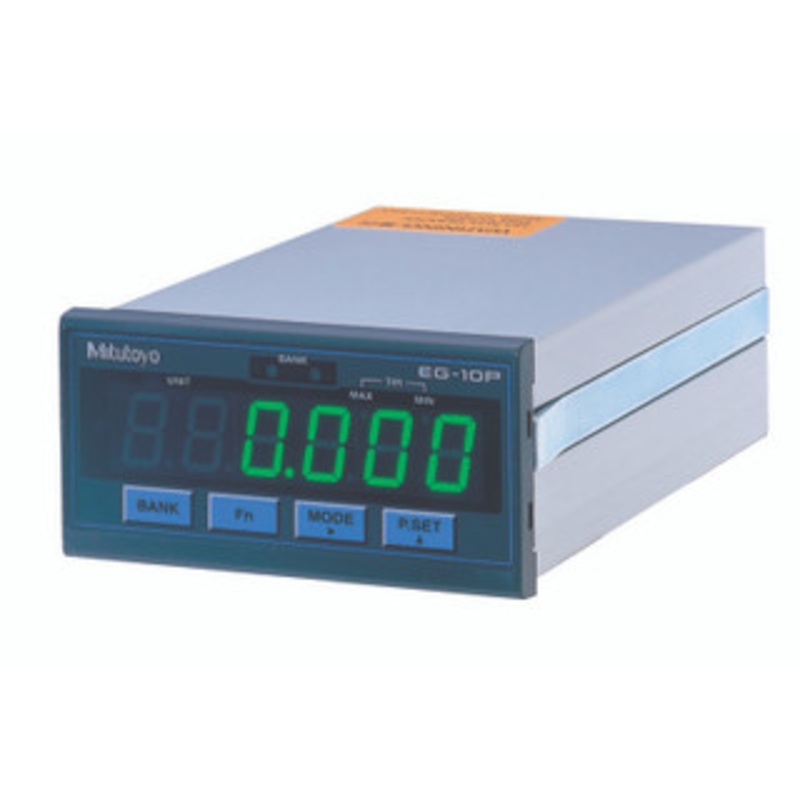

Mitutoyo EG Counter Series 542 Assembly Type Display Unit – 542-017

Package No. 64PKA133
Model EG-101Z

• Produces 3-step/5-step, 7 kinds of tolerance output and limit value output independently for each of 7 channels.
• Comes with serial BCD output capability, for connection to a programmable controller or personal computer, etc.
• Dynamic measurement possible with simplified analog output. Employs DIN size (9648mm) and mounton-panel configuration to facilitate system integration.

Function:

• Preset
• Direction switch
• Tolerance judgment (3/5-step, 3 kinds)
• Peak (max., min., runout) measurement
• Constant number
• Smoothing
• Error display/output
• Key protection

Optional Accessories:

• I/O output connector (with cover): No.02ADB440
• AC adapter: No.02ADN460
• AC cable (USA): 02ZAA010
• Terminal connecting cable: No.02ADD930

Technical Details:

Display Sign plus 6 digits (Green LED) Tolerance judgment display LED display (3 steps: Amber, Green, Red/ 5 steps: Amber, Amber flashing, Green, Red flashing, Red) Tolerance judgment output L1 to L5 (Open-collector / Switchover between L1 to L5 and BCD output with parameter) Control output Normal operation signal (NOM): open-collector BCD output Open-collector / Switchover between 6-digit (positive/negative-true logic) and tolerance judgment output with parameter Control input Presetting, display hold, peak value clear, tolerance judgment BANK switch Rating Power supply voltage 12 – 24V DC
Power consumption 6W or less (500mA max.)
Ensure at least 1A is available per unit. Operating temperature range 0 to 40C (RH 20 to 80%, no condensation) Storage temperature range -10 to 50C (RH 20 to 80%, no condensation) External dimensions 96 (W) 48 (H) 156 (D) mm

Specifications:

Order No 542-017 Package No.(counter w/AC adapter) 64PKA133 Model No EG-101Z Applicable gage LGF with reference point mark (LGF-Z) Quantizing error 1 count Resolution .001″, .0005″, .0001″, .00005″, .00001″, .000005″ /
0.01mm, 0.005mm, 0.001mm, 0.0005mm, 0.0001mm Tolerance judgment display LED display (3 steps: Amber, Green, Red/5 steps: Amber, Amber flash, Green, Red flash, Red) Applicable input Differential square-wave w/origin point mark Number of gage input 1 Mass Approx. 400g

See all Mitutoyo EG Counter Series 542 Assembly Type Display Units

Model EG-101Z for use with:

• Mitutoyo Linear Gages LGF-Z with Origin Point Mark Series 542
