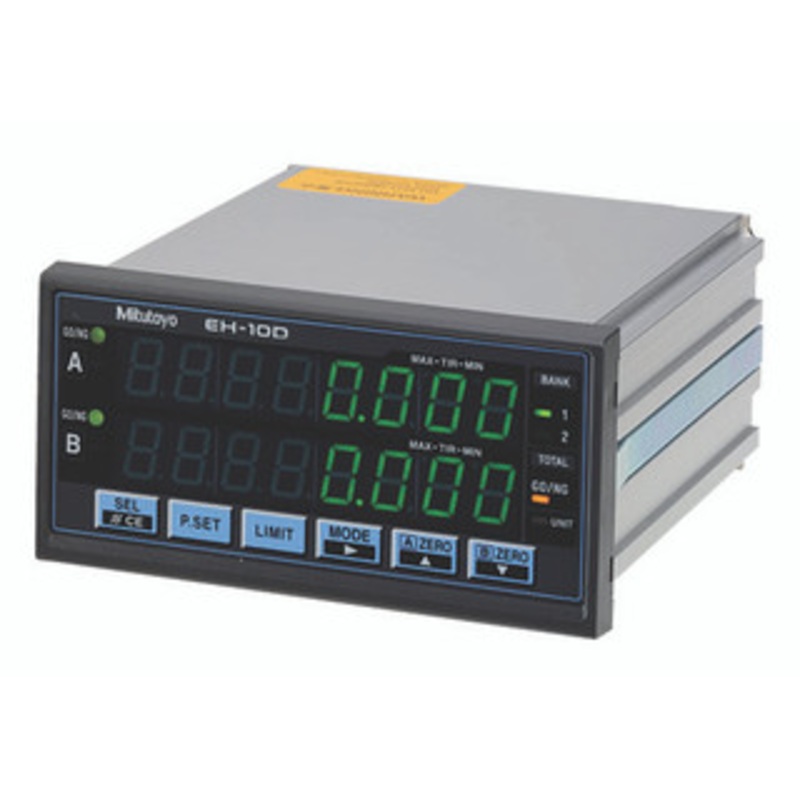

Mitutoyo EH Counter Series 542 Multi-function Display Unit – 542-075A

Model EH-101P

Features:

• Two types are available for this model: a 1-axis display and a 2-axis display, which enables addition or subtraction calculations between two gages.
• Multifunctional counter equipped with zerosetting, presetting, tolerance judgment.
• RS-232C and USB are equipped as standard.Data transfer to a PC is possible. (*USB is supported only by Mitutoyo SENSORPAK.)

Technical Data:

Display Sign plus 8 digits (Green LED) Tolerance judgment display LED display (3 steps: Amber, Green, Red/ 5 steps: Amber, Amber flashing, Green, Red flashing, Red) Interface:

RS-232C/USB/parameter selection via digimatic (only DP-1VR, digimatic mini-processor can be connected)
(USB used only with SENSORPAK.)
Selection by parameter from 3-step, 5-step, or digit BCD
Total tolerance judgment output (when tolerance function is enabled)
Analog output (1V-4V)

Input/output:

Control output- Normal operation signal (NOM): open-collector
Control input- Display BANK switching, peak mode, presetting, display hold, hold per axis:
open-collector or no-voltage contact signal (with/without contact point)

Rating:

Power supply voltage: Supplied AC adapter, or 12 – 24V DC
Power consumption: 8.4W (max. 700mA) Ensure at least 1A is available per unit.

Operating temperature (humidity) range 0 to 40C (RH 20 to 80%, no condensation) Storage temperature(humidity) range -10 to 50C (RH 20 to 80%, no condensation) External dimensions 144 (W) x 72 (H) x 156.7 (D) mm Standard Accessory AC adapter: No.02ADN460
AC cable (USA): No.02ZAA010

Optional Accessories:

• 02ADB440: I/O output connector
• 02ADF180: 10-key unit
• 936937: SPC cable (40/1m)
• 965014: SPC cable (80/2m)

Specifications:

Order No 542-075A Model EH-101P Applicable
gage
head LGE, LGF, LGK, LGB, LGM, LG, LGH
(not compatible with LGH-110,
reference point, or sine wave models) No of
gage input 1
(Single-display) Quantizing
error 1 count Max input
frequency 2.5MHz
(Differential
square-wave) Resolution .000005, .00005, .0005″ /
0.0001, 0.0005, 0.001,
0.005, 0.01mm Mass 760g Tolerance judgment display LED display (3 steps: Amber, Green, Red / 5 steps: Amber, Amber flash, Green, Red flash, Red)

See all Mitutoyo EH Counter Series 542 Multi-function Display Units

for use with:

• Mitutoyo Linear Gages LGF Series 542
• Mitutoyo Linear Gages LGF, High Resolution, Robust Series 542
