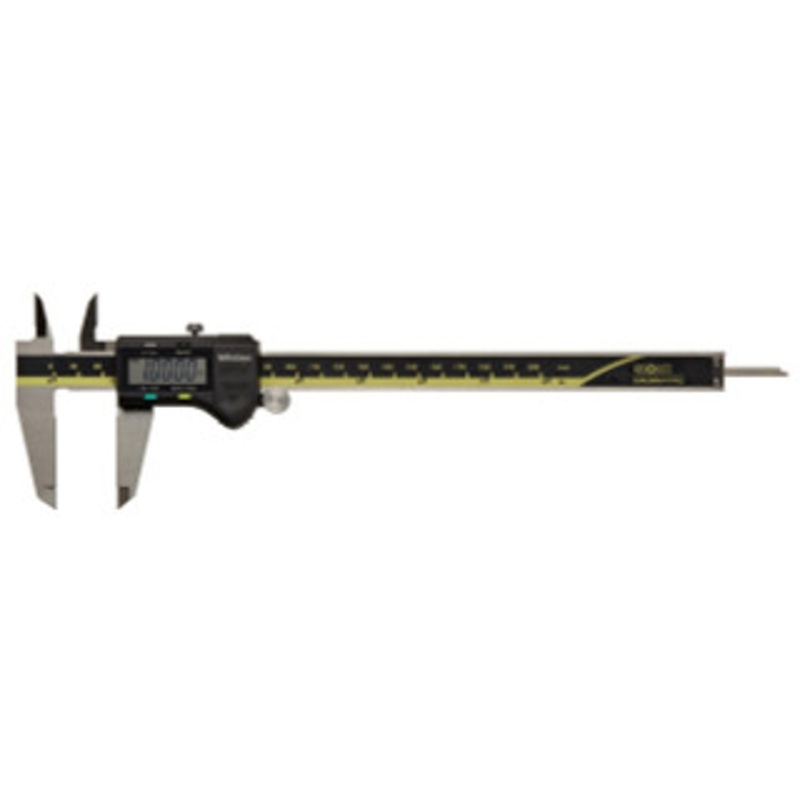

Mitutoyo MyCAL Digital Caliper – 500-197

ABSOLUTE Digimatic Caliper Series 500, Range: 0 – 8″

– with Exclusive ABSOLUTE Encode Technology

Features:

• Large and clear LCD readout.
• The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
• Data Hold Unit (959143) is optional.
• Carbide-tipped jaw type calipers are also available.
• With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
• Supplied in fitted plastic case.Except 1000mm / 40 supplied in wooden case.

Technical Data:

• Accuracy: Refer to the list of specifications
• Resolution: 0.01mm or .0005″/0.01mm
• Repeatability: 0.01mm / .0005
• Display: LCD
• Length standard: ABSOLUTE electrostatic capacitance type
• linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3.5 years under normal use

Function:

• Origin-set, Zero-setting, Data output, inch/mm conversion (inch/mm models ONLY)
• Alarm: Low voltage, Counting value composition error
