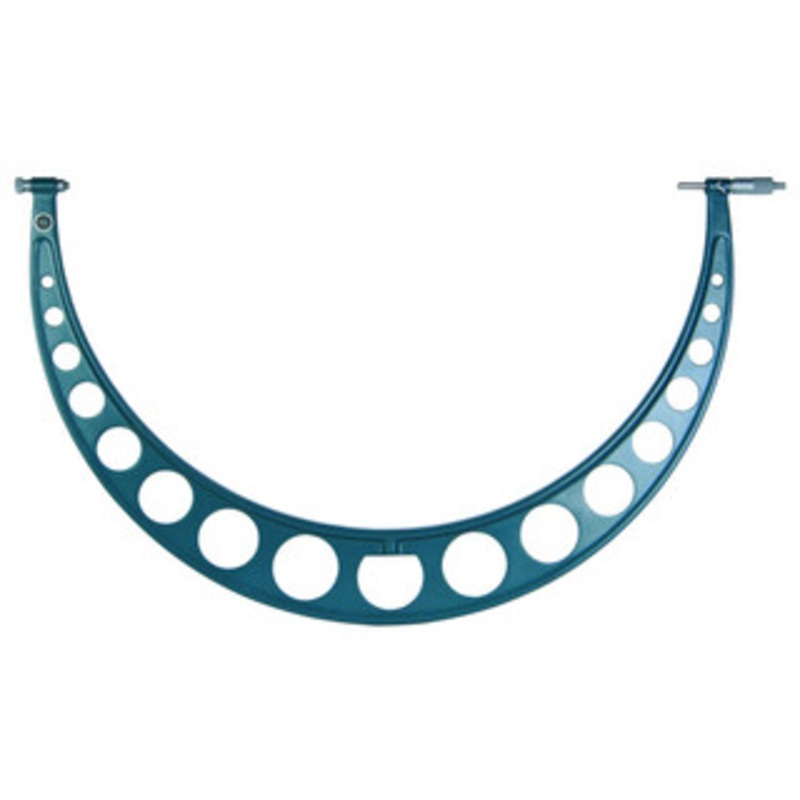

Mitutoyo Outside Micrometer, Series 104 with Interchangeable Anvils, 20-24″ – 104-154

Features:

• IP65 water/dust protection 340 series models with a range up to 12in/300mm
• Wide measuring range with interchangeable anvils
• With a Ratchet Stop for constant force
• Supplied with zero-setting standards bar for each range
• With SPC output (Series 340)
• Supplied in fitted wooden case

Technical Data:

Accuracy (4+R/75)m, R=max. range (mm)
[.00016 .00004 (L/3)] L = Max Range (Inch) Resolution* 0.001mm or .0001″/0.001mm
(340-351-10: .00005″/0.001mm) Graduation** 0.01mm Flatness 0.6m/.000024 for models up to 300mm/12
1m/.00004 for models over 300mm/12 Parallelism 2m/.00008 for models up to 75mm/3
3m/.00012 for models up to 150mm/6
(2+R/100)m for models over 150mm, R=max. range (mm)
[.00008 .00004 (L/4)] L= Max range (inch) Measuring faces Carbide tipped Display* LCD Battery* SR44 (1 pc.), 938882 Battery life* Approx. 1.2 years under normal use Dust/Water protection level* IP65

* Series 340 Digital models only
** Series 104 Analog models only
