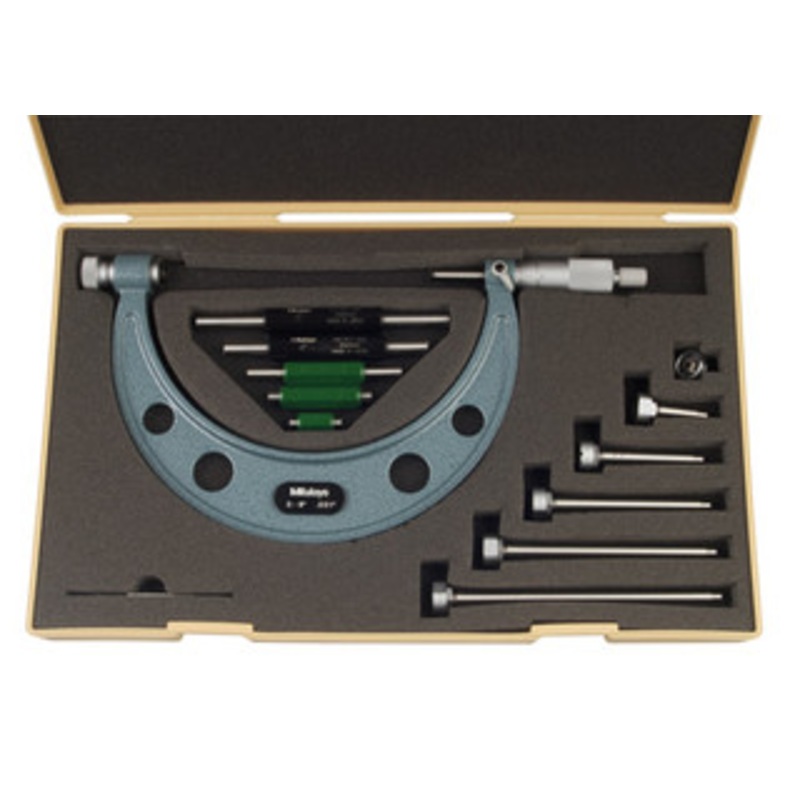

Mitutoyo Outside Micrometers Series 340 with Interchangeable Anvils

FEATURES:

• IP65 water/dust protection 340 series models with a range up to 12in/300mm.
• Wide measuring range with interchangeable anvils.
• With a Ratchet Stop for constant force.
• Supplied with zero-setting standards bar for each range.
• With SPC output (Series 340).
• Supplied in fitted wooden case.

Technical Data

• Accuracy: (4+R/75)m, R=max. range (mm) [.00016 .00004 (L/3)] L = Max Range (Inch)
• Resolution*: 0.001mm or .0001″/0.001mm (340-351-10: .00005″/0.001mm)
• Graduation**: 0.01mm
• Flatness: 0.6m/.000024 for models up to 300mm/12 1m/.00004 for models over 300mm/12
• Parallelism: 2m/.00008 for models up to 75mm/3 3m/.00012 for models up to 150mm/6 (2+R/100)m for models over 150mm, R=max. range (mm) [.00008 .00004 (L/4)] L= Max range (inch)
• Measuring faces: Carbide tipped
• Display*: LCD
• Battery*: SR44 (1 pc.), 938882
• Battery life*: Approx. 1.2 years under normal use
• Dust/Water protection level*: IP65
• *Digital models **Analog models

Function of Digital Model

• Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error
• ***Function Lock
• ***2 Presets
• ***100-300mm/4-12
