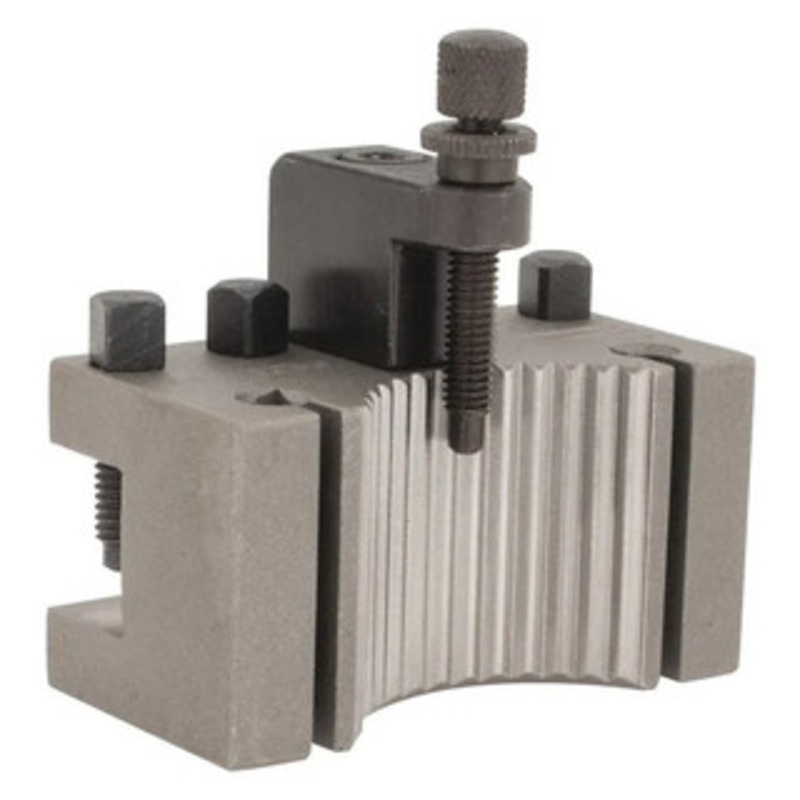

Multiquick “D” Turning & Facing Holder, Size Aa – 71-211-7
Series AA, #AaD 1250 Tool Post Holder
225mm Lathe Swing, 59mm OAH x 50mm OAL, 12mm Max Tool Cutting Size, 26mm Centerline Height
0.0001″ Accuracy
- Swiss precision and perfection; internationally acclaimed by the leaders in industry
- All parts, toolposts and holders are manufactured from high quality chrome steel, thru hardened
- The splines of the toolpost and holders are precision ground for 0.0001″ repeat accuracy
- Cam-lock handle rigidly locks and quickly releases toolholder
- 40 different angles (every 9) are conveniently selected from position dial with marker
- No limitations as to the number and types of tools to be used
- Correct height of cutting edge is easily and accurately adjusted by a special set-screw built into each holder
- Tools can be re-ground without removal from toolholder setting remains unaltered
- Holders are interchangeable with most other brand 40 position toolposts
| Series |
AA |
| Tool Post Holder Number |
AaD 1250 |
| Tool Post Holder Type |
Tool Holder |
| Lathe Swing (mm) |
225 |
| Through Coolant |
No |
| Overall Height (mm) |
59.00 |
| Overall Length (mm) |
50.00 |
| Maximum Cutting Tool Size (mm) |
12.00 |
| Centerline Height (mm) |
26.00 |
Click to Download Multiquick Full Parts Guide PDF
See all parts for the Multiquick: 40 Position Quick Change Tool Holder for all Lathes
