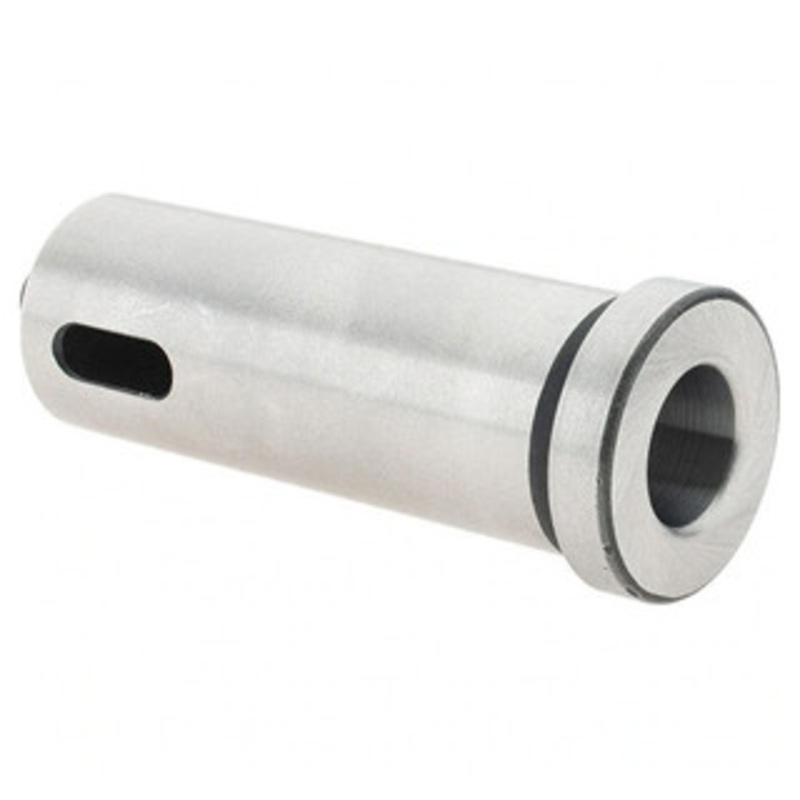

Multiquick “L” Morse Bushing, Size C, MT 3 – 71-266-1
50 mm Outside Diameter Lathe Tool Holder Bushing
Type CL, 3MT Taper
CL metric toolholder bushings are designed with an elongated slot and can be used with most Computer Numerical Control (CNC) lathes. They are considered to be universal and can be used for several set screw configurations.
| Type |
CL |
| Outside Diameter (mm) |
50.00 |
| Morse Taper Size |
3MT |
- Swiss precision and perfection; internationally acclaimed by the leaders in industry
- All parts, toolposts and holders are manufactured from high quality chrome steel, thru hardened
- The splines of the toolpost and holders are precision ground for 0.0001″ repeat accuracy
- Cam-lock handle rigidly locks and quickly releases toolholder
- 40 different angles (every 9) are conveniently selected from position dial with marker
- No limitations as to the number and types of tools to be used
- Correct height of cutting edge is easily and accurately adjusted by a special set-screw built into each holder
- Tools can be re-ground without removal from toolholder setting remains unaltered
- Holders are interchangeable with most other brand 40 position toolposts
“J” Drilling and Boring Holders – “L” Morse Bushings
Click to Download Multiquick Full Parts Guide PDF
See all parts for the Multiquick: 40 Position Quick Change Tool Holder for all Lathes
