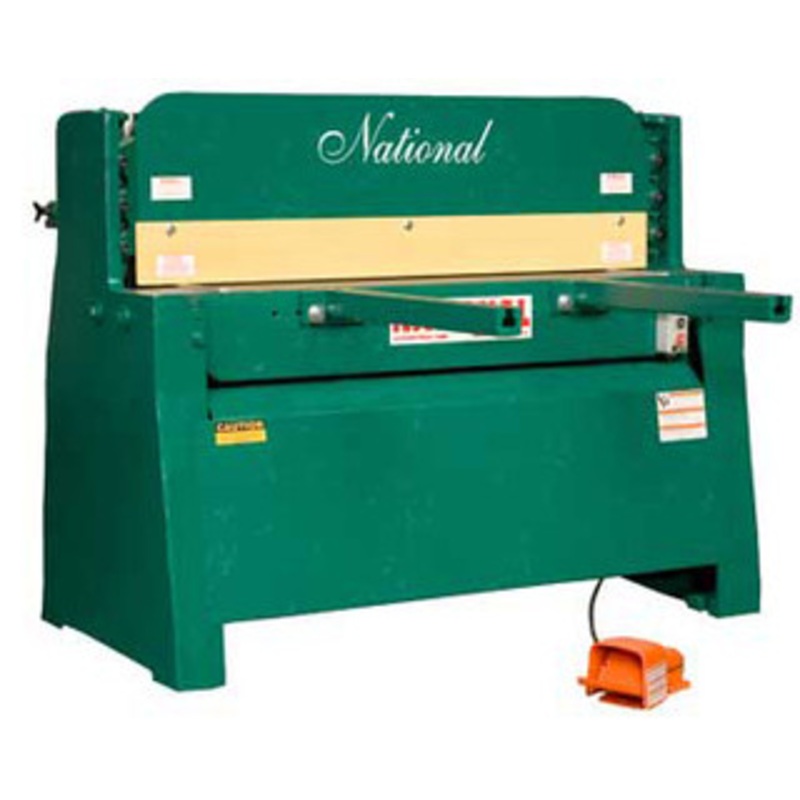

National Heavy Duty Hydraulic Shears

National offers four powerful heavy duty precision hydraulic shears with all steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. You receive a full three year warranty. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator.

National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flathead screws through countersunk holes in blades. Complete cuts of full width pieces are 2 longer than specified cutting length. The high strength steel side constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Under drive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile.

Specifications:

Model NH4825 NH7225 NH9625 NH12025

Capacity

(Tensile Stregnth 55,000 lbs. @ rated capacity)

Mild Steel 1/4″ / 6.4mm

Stainless 1/8″ / 3.2mm

Mild Steel 1/4″ / 6.4mm

Stainless 1/8″ / 3.2mm

Mild Steel 1/4″ / 6.4mm

Stainless 1/8″ / 3.2mm

Mild Steel 1/4″ / 6.4mm

Stainless 1/8″ / 3.2mm

Strokes Per Minute Approx. 20 Approx. 20 Approx. 12 Approx. 12 Cutting Length 48″ / 1219mm 72″ / 1829mm 96″ / 2438mm 120″ / 3048mm Shipping Weight 5000 lbs. / 2268 kgs 6000 lbs. / 2722 kgs 7000 lbs. / 3176 kgs 9000 lbs. / 4091 kgs Floor Space w/ Gauges

66-1/2″ x 98″ x 54″

1689 x 2489 x 1372mm

84″ x 98″ x 54″

2134 x 2489 x 1372mm

116″ x 98″ x 60″

2946 x 2489 x 1524mm

140″ x 98″ x 60″

3556 x 2489 x 1524mm

Floor Space w/o Gauges

66-1/2″ x 38″ x 54″

1689 x 965 x 1372mm

84″ x 38″ x 54″

2134 x 965 x 1372mm

116″ x 39-1/4″ x 60″

2946 x 997 x 1524mm

140″ x 39-1/4″ x 60″

3556 x 997 x 1524mm

Oil Reservoir Capacity 24 gal. / 91 liters 24 gal. / 91 liters 24 gal. / 91 liters 24 gal. / 91 liters

Motor

Single Phase Available

7.5 HP 208 volt

1800 rpm 240 volt

3 phase 460 volt

7.5 HP 208 volt

1800 rpm 240 volt

3 phase 460 volt

7.5 HP 208 volt

1800 rpm 240 volt

3 phase 460 volt

7.5 HP 208 volt

1800 rpm 240 volt

3 phase 460 volt
