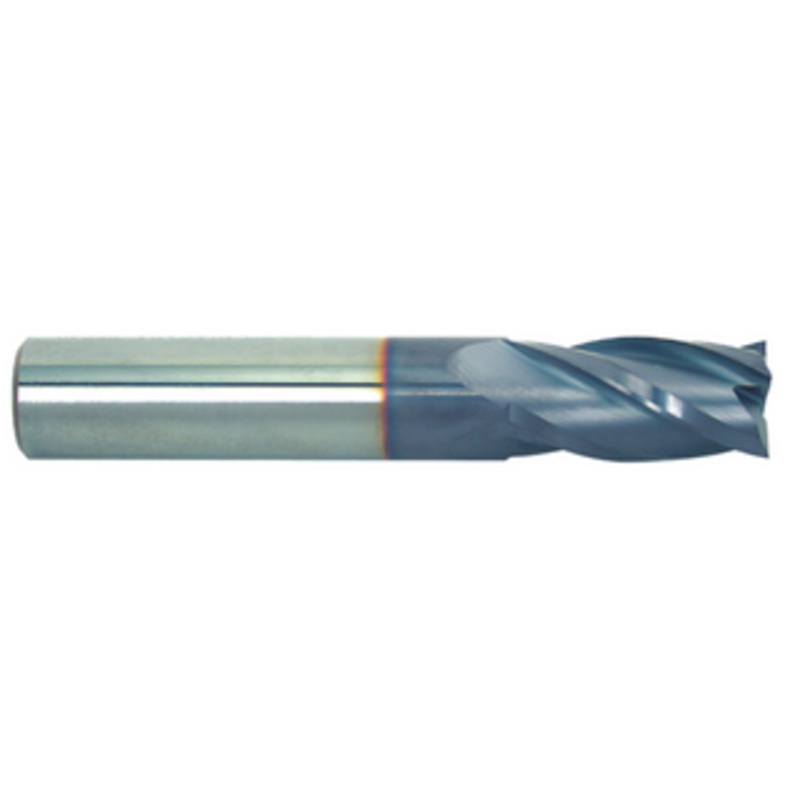

Niagara Cutter 4 Flute Solid Carbide TiAlN Coated Single End Mill, 5/16″ Size, 5/16″ Shank Diameter, 1/2″ Length of Cut, 3″ Overall Length

• Series: C430
• For wide general purpose application range.
• 4-flute single end mill with Niagara micro shield TiAlN coating.
• Titanium Aluminum Nitride (TiAlN) coating provides higher feeds, speeds, and tool life.
• The coating allows the tool to be used in extremely heat-resistant, high-speed applications involving wet, semi-dry to dry cutting conditions.
• Right hand cut, Right hand spiral, general purpose finishing end mill.
• Tool made from premium submicron carbide with 10% cobalt.
• The round shank accommodates a variety of holders.
• The spiral multi-flute design allows for a faster and smoother cutting action.
• Stock will rotate towards TiAlN coating.
• Suitable for use with wax or liquid lubricants.
• Center Cutting
• Flute Shape: Helix
• Helix Angle: 30
• Shank Style: Straight Shank
• Tolerance_Cutting Diameter: +.000″ / -.002″
• Tolerance_Shank Diameter: +.0001″ / -.0004″
• Tolerance_Overall Length: .060″
• Workpiece Material Range: Steel, Stainless Steel, High-Temp Exotic Alloys, Non-Ferrous, Cast Iron, Hard Materials, Plastics
