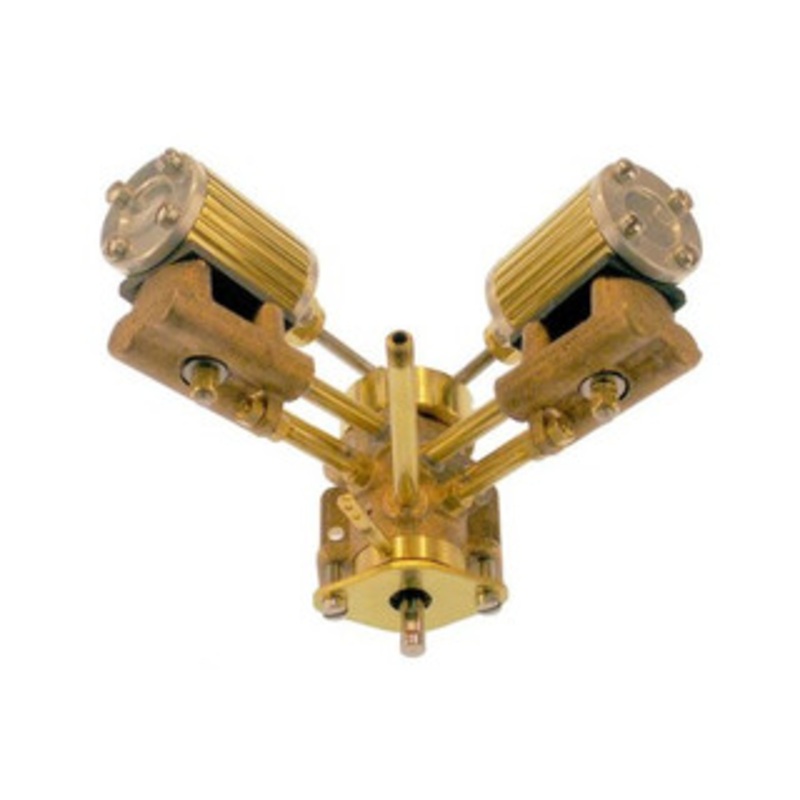

P.M. Research Twin Cylinder Oscillating Marine Engine

MSE-08

TWIN CYLINDER OSCILLATING MARINE ENGINESteam Engine #8

AHOY MATES! Many of you have asked for it. Well, here it is! PM’s first true marine engine. You are going to love this little Beauty! This unique engine has forward, reverse and speed control capabilities, using a single lever which can be servo operated for radio control. Think of it. Just one servo does all of this! Stop! Go Forward! Go Aft! And control the speed in both directions!

This engine features a cast bronze base and frames, plus oilite bronze sleeve bearings on the crank shaft and piston rod. The crank pin bearings are machined from solid bronze which run on a ground pin. It also has a precision ground stainless steel piston rod with “O” ring seals. The light weight aluminum cylinders are hard anodized to give you long wear. The crankshaft is 3/16″ diameter precision ground stainless steel. The steam inlet and outlet are both threaded 3/16-40. This kit comes completely machined for easy assembly.

Bore: 1/2″
Stroke: 3/4″
Twin Cylinder Double Acting
Height: 2-1/2
Width: 4-1/2
Length: 3-1/8
