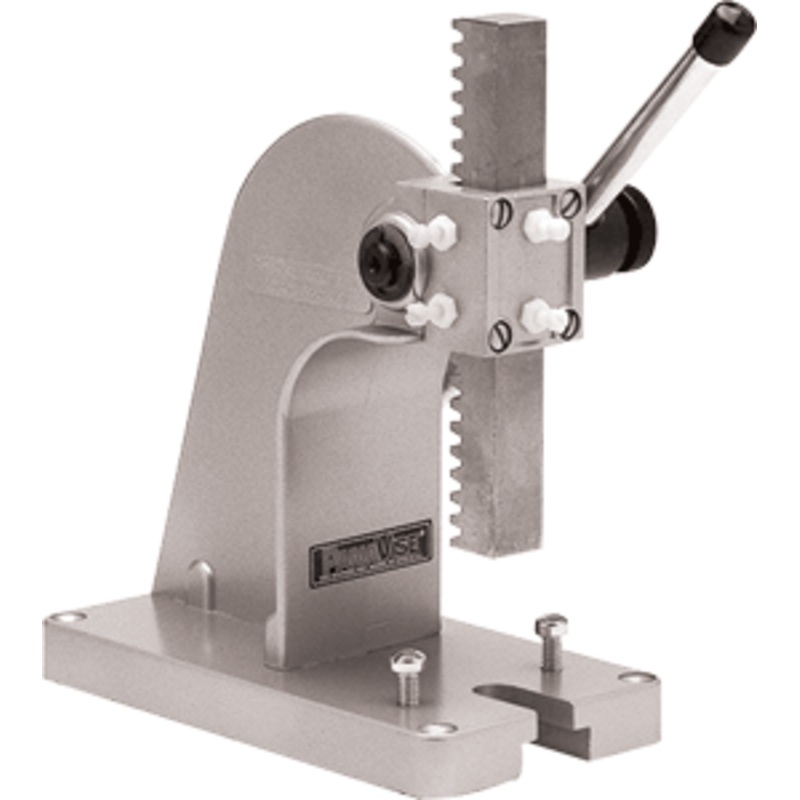

PanaVise Precision PanaPressModel: 502

Ideal for pressing bearings, sleeves, collars, forming and assembling small parts, broaching, staking, etc.

This precision 1/4 ton (227kg) PanaPress (arbor press) is extremely useful in manufacturing or as a repair tool.

Reversible ram applies up to 1/4 ton (500 lbs. / 227kg) of pressure and is 0.75 x 0.75 (19.1mm x 19.1mm) square and 5.875 (149.2mm) long

One end of the ram is reamed 0.251 (6.4mm) for adding tooling

Four adjustable nylon gibs provide exceptional ram control

Arm is 8 (203.2mm) long

Base footprint is 3.7 x 7 (94mm x 177.8mm) and includes four 0.25 (6.3mm) holes countersunk at the corners for bolting to a work surface

Two additional holes for mounting Retrofit Kits on the base are pre-drilled and tapped 1/4-20 and may be used for customer tooling

Height (from base to top of back – not including variable ram height or arm length): 7 (177.8mm), Weight: 5.4 lbs. (2.5kg)
