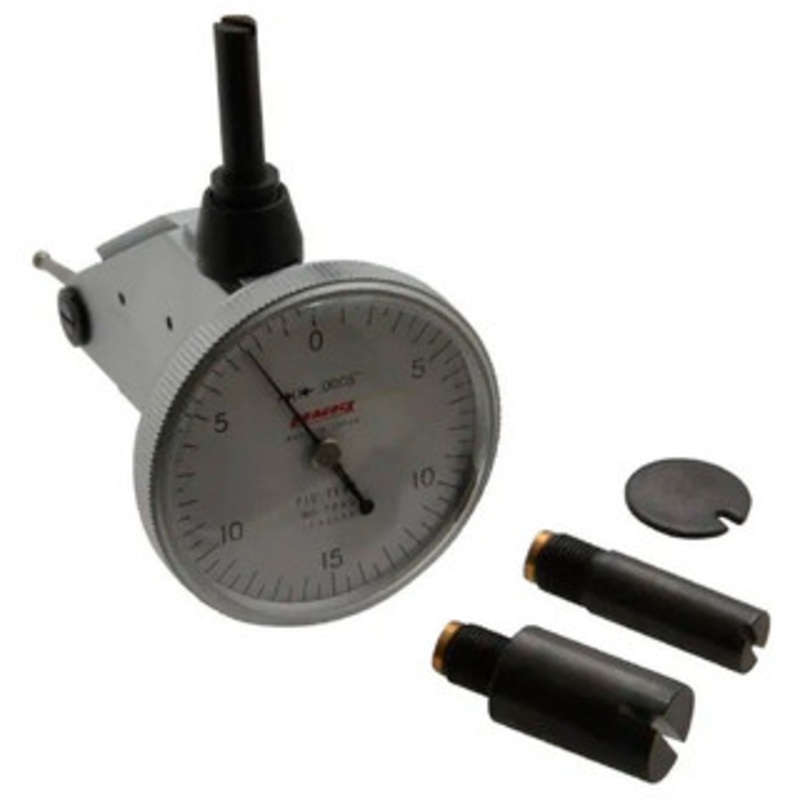

Peacock Dial Test Indicator, Vertical
0 – 0.030″ Range, White Dial Face

• Available with white face and black needle or black face with orange needle
• Complete with 0.038″, 0.078″, 0.125″ diameter chrome contact points and 3/8″, 1/4″ and 5/32″ diameter holder stems
• Auto reversing
• 180 swing on point and shaft
• Fully jeweled movements
• Universal positioning capability
• Dovetails on top and back
• Non-magnetic

Specifications:

Maximum Measurement (Decimal Inch) 0.0300 Dial Graduation (Decimal Inch) 0.000500 Dial Reading 0-15-0 Dial Diameter (Inch) 1-3/8 Style Vertical Dial Color White Minimum Measurement (Decimal Inch) 0.0000 Contact Point Length (Decimal Inch) 0.7500 Ball Diameter (Decimal Inch) 0.0380; 0.0780; 0.1250 Accuracy (Decimal Inch) 0.000500 Number of Contact Points Included 3
