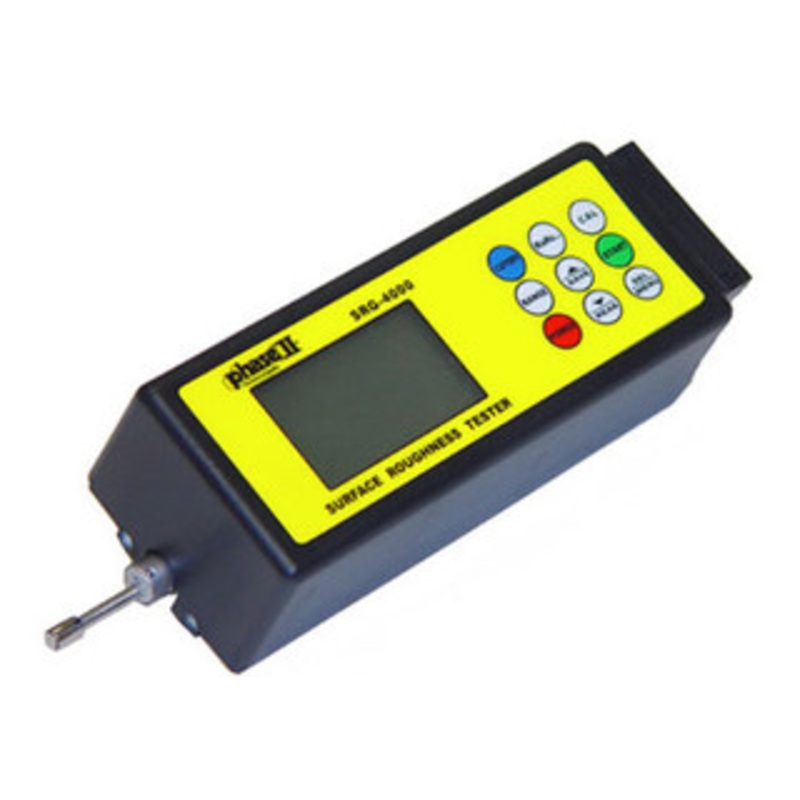

Phase II Surface Roughness Tester Profilometer
SRG-4000

The latest in state-of-the-art surface roughness testers profilometer, the SRG-4000 is designed with the shop environment in mind. These surface roughness testers profilometer are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester are offered via multiple surface roughness profilometer parameters, Ra, Rq(Rms), Rt and Rz.

The diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The SRG-4000 surface roughness testers profilometer utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Measurement results are displayed as large characters on the LCD screen for easy recognition.

Battery powered portability allows the SRG-4000 surface roughness testers profilometer to mobilize productivity throughout the shop.

Optional accessories available for the SRG-4000 surface roughness testers profilometer include:

• 2um Stylus
• Extension Rod
• Stand
• NIST certified surface roughness standard

Features:

• Menu driven operating system
• 4 Different roughness parameters
• Inside/Outside Diameters
• Stylus position indicator
• RS 232 output to printer/PC
• Extended memory functions

Specifications:

Roughness Parameters: Ra, Rz, Rq, Rt Assessed Profiles Primary profile(p), Roughness profile(R) tp curve (Mr) Conformance Standards: ISO/DIN/JIS/ANSI Measuring System Metric m, Imperial inch Display Resolution +/-20 m = 0.001 m
+/-40 m = 0.002 m
+/-80 m = 0.004 m Display Range Ra, Rq: 0.005 m up to 16 m
Rz, Rt: 0.02 m up to 160 m Pick Up Measuring Range: +/- 80 m Sensor Specifications: 5 m Diamond Tip Stylus Sensor Angle: 90 Contact Force: 4mN (0.4gf) Display features Stylus position sensor
Battery level indicator
Direct display of parameters
Direct printing
Auto-off with auto store Data output RS 232 to printer/PC Cut-off lengths 0.25mm/0.8mm/2.5mm Tracing length Lt 1.3mm 17.5mm Digital Filter RC, PC-RC, GUASSIAN, D-P Detector Diamond tip radius 5 m Power Li-Ion battery Working temperature 5-40 degrees C. Dimensions 139mm x 56mm x 48mm Weight 450g
